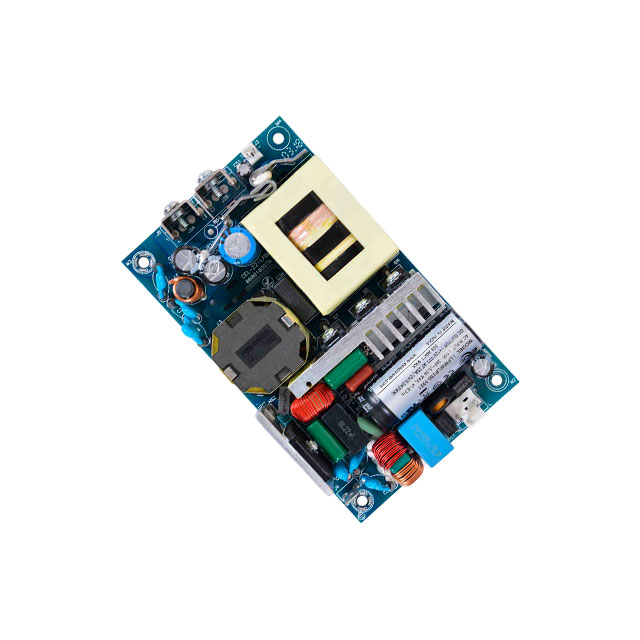

LFMWLP350-1305-EX

Active

EOS Power India Private Ltd

AC/DC CONVERTER 30V 200W

Deep-Dive with AI

Search across all available documentation for this part.

LFMWLP350-1305-EX

Active

EOS Power India Private Ltd

AC/DC CONVERTER 30V 200W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LFMWLP350-1305-EX

Applications	Medical
Approval Agency	cUL, CE, UL, CB, NEMKO
Current - Output 1	6.67 A
Efficiency	93 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	350 W
Power (Watts)	200 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1 "
Size / Dimension [z]	25.4 mm
Type	Open Frame
Voltage - Input	390 VDC
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	30 V

MWLP350 Series

Part	Approval Agency	Voltage - Isolation	Number of Outputs	Current - Output 1	Mounting Type	Power (Watts)	Power (Watts)	Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Input	Efficiency	Voltage - Output 1	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features
EOS Power India Private Ltd LFMWLP350-1305-EX	CB CE cUL NEMKO UL	4000 V	1	6.67 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	93 %	30 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output PFC Standby Output Universal Input
EOS Power India Private Ltd LFMWLP350-1002	CB CE cUL NEMKO UL	4000 V	1	12 A	Chassis Mount	325 W	180 W	Open Frame	90 VAC	264 VAC	390 VDC	92 %	15 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output PFC Standby Output Universal Input
EOS Power India Private Ltd LFMWLP350-1302	CB CE cUL NEMKO UL	4000 V	1	12 A	Chassis Mount		180 W 270 W	Open Frame	90 VAC	264 VAC	390 VDC	92 %	15 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output PFC Standby Output Universal Input
EOS Power India Private Ltd LFMWLP350-1005	CB CE cUL NEMKO UL	4000 V	1	6.67 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	93 %	30 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output PFC Standby Output Universal Input
EOS Power India Private Ltd LFMWLP350-1304	CB CE cUL NEMKO UL	4000 V	1	4.17 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	94 %	48 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output PFC Standby Output Universal Input
EOS Power India Private Ltd LFMWLP350-1002-EX	CB CE cUL NEMKO UL	4000 V	1	12 A	Chassis Mount	325 W	180 W	Open Frame	90 VAC	264 VAC	390 VDC	92 %	15 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output PFC Standby Output Universal Input
EOS Power India Private Ltd LFMWLP350-1004-EX	CB CE cUL NEMKO UL	4000 V	1	4.17 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	94 %	48 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output PFC Standby Output Universal Input
EOS Power India Private Ltd LFMWLP350-1006-EX	CB CE cUL NEMKO UL	4000 V	1	3.45 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	94 %		Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output PFC Standby Output Universal Input
EOS Power India Private Ltd LFMWLP350-1301-EX	CB CE cUL NEMKO UL	4000 V	1	15 A	Chassis Mount	225 W	180 W	Open Frame	90 VAC	264 VAC	390 VDC	92 %	12 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output PFC Standby Output Universal Input
EOS Power India Private Ltd LFMWLP350-1006	CB CE cUL NEMKO UL	4000 V	1	3.45 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	94 %		Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output PFC Standby Output Universal Input

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	54	$ 122.59

Description

General part information

MWLP350 Series

Open Frame AC DC Converters 1 Output 30V 90 ~ 264 VAC, 390VDC Input

Documents

Technical documentation and resources

No documents available
