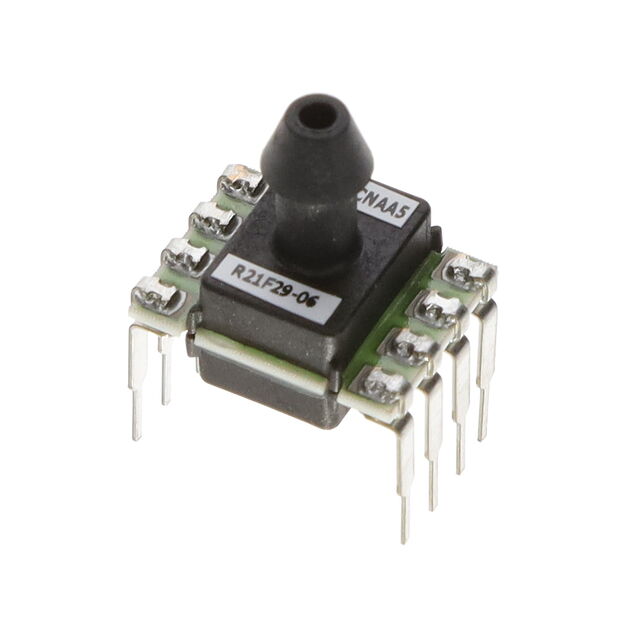

ELVH-015A-HAND-C-NAA5

Active

Amphenol All Sensors Corporation

SENSOR 14.94PSIA 0.19"

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 14.94PSIA 0.19"

Technical Specifications

Parameters and characteristics for this part

Part	Port Style	Maximum Pressure	Maximum Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Termination Style	Accuracy	Package / Case	Package / Case	Operating Pressure [custom]	Operating Pressure [custom]	Port Size	Port Size	Features	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Output	Port Size
Amphenol All Sensors Corporation ELVH-015A-HAND-C-NAA5	Barbed	103 kPa	14.94 PSI	2.7 V	5.5 V	Through Hole	PC Pin	0.25 %	0.524 " 13.3 mm	8-DIP	15 PSI	103.42 kPa	4.93 mm	0.19 "	Temperature Compensated	Analog Voltage
Amphenol All Sensors Corporation ELVH-015A-HAND-I-NAA5	Barbed	103 kPa	14.94 PSI	2.7 V	5.5 V	Through Hole	PC Pin	0.25 %	0.524 " 13.3 mm	8-DIP	15 PSI	103.42 kPa	4.93 mm	0.19 "	Temperature Compensated	Analog Voltage	85 °C	-20 C
Amphenol All Sensors Corporation ELVH-015A-HRNJ-I-NSA5	Barbed	103 kPa	14.94 PSI	2.7 V	5.5 V	Surface Mount	J Lead	0.25 %		8-SMD J-Lead Side Port	15 PSI	103.42 kPa	1.6 mm	0.06 "	Temperature Compensated	SPI	85 °C	-20 C	14 b	Male
Amphenol All Sensors Corporation ELVH-015A-HNNJ-C-NAA5	No Port	103 kPa	14.94 PSI	2.7 V	5.5 V	Surface Mount	J Lead	0.25 %		8-SMD J-Lead	15 PSI	103.42 kPa			Temperature Compensated	Analog Voltage
Amphenol All Sensors Corporation ELVH-015A-HAND-I-PSA4	Barbed	103 kPa	14.94 PSI	2.7 V	5.5 V	Through Hole	PC Pin	0.25 %	0.524 " 13.3 mm	8-DIP	15 PSI	103.42 kPa	4.93 mm	0.19 "	Temperature Compensated	SPI	85 °C	-20 C	14 b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.19" (4.93mm) Tube 8-DIP (0.524", 13.30mm), Top Port
