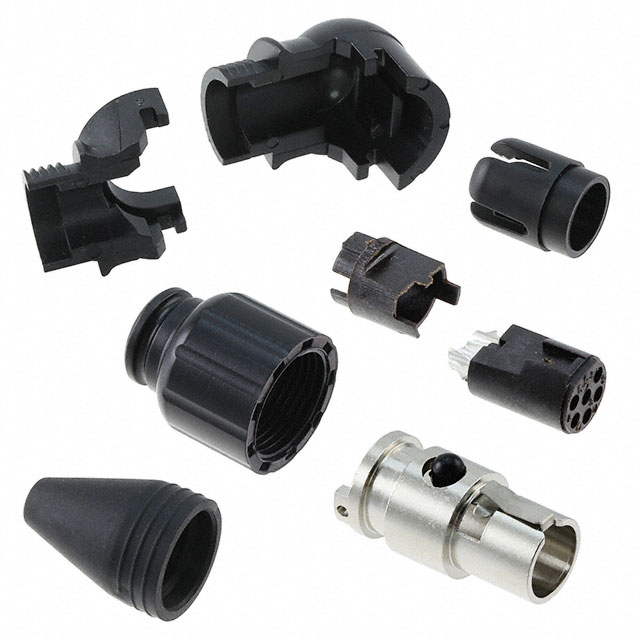

TARA6FX
ActiveSwitchcraft Inc.
CONN PLUG FMALE MINI XLR 6P SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TARA6FX
ActiveSwitchcraft Inc.
CONN PLUG FMALE MINI XLR 6P SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TARA6FX |
|---|---|
| Applications | Communication Systems, Medical, Audio, Industrial |
| Cable Opening [Max] [diameter] | 3.81 mm |
| Cable Opening [Max] [diameter] | 0.15 in |
| Cable Opening [Min] [diameter] | 0.12 in |
| Cable Opening [Min] [diameter] | 3.05 mm |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Fastening Type | Latch Lock |
| Features | Backshell, Strain Relief, Ground, Cable Clamp |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | Mini XLR |
| Termination | Solder |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.62 | |
| 10 | $ 8.53 | |||
| 25 | $ 8.20 | |||
| 50 | $ 7.87 | |||
| 100 | $ 7.70 | |||
Description
General part information
TARA6F Series
6 Position Circular Connector Plug, Female Sockets Solder
