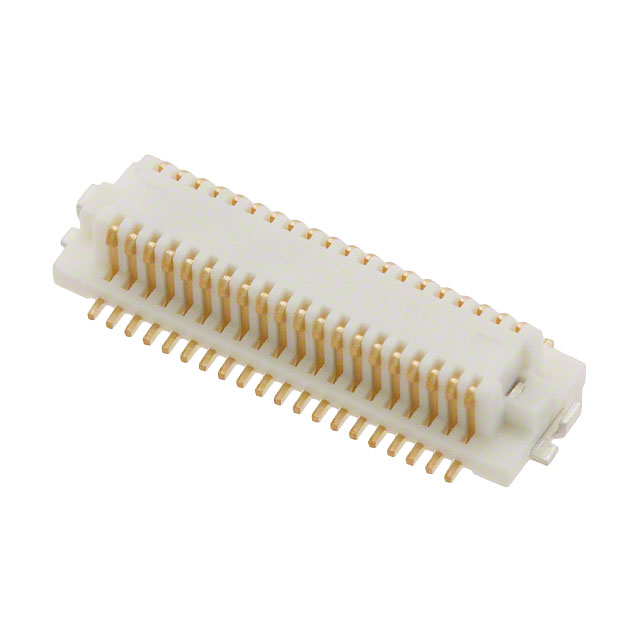

DF12C(3.0)-40DS-0.5V(81)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF12C(3.0)-40DS-0.5V(81)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Height Above Board	0.087 in
Height Above Board	2.2 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Height Above Board	Height Above Board	Contact Finish	Number of Positions	Number of Rows	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mated Stacking Heights
Hirose Electric USA, Inc. DF12C(3.0)-20DS-0.5V(81)	0.087 in	2.2 mm	Gold	20	2	Center Strip Contacts Receptacle	Surface Mount	8 çin	0.203 çm	0.5 mm	0.02 in	3 mm
Hirose Electric USA, Inc. DF12C(3.0)-40DS-0.5V(81)	0.087 in	2.2 mm	Gold	40	2	Center Strip Contacts Receptacle	Surface Mount	8 çin	0.203 çm	0.5 mm	0.02 in	3 mm
Hirose Electric USA, Inc. DF12C(3.0)-50DS-0.5V(65)	0.087 in	2.2 mm	Gold	50	2	Center Strip Contacts Receptacle	Surface Mount			0.5 mm	0.02 in	3 mm
Hirose Electric USA, Inc. DF12C(3.0)-60DS-0.5V(81)	0.087 in	2.2 mm	Gold	60	2	Center Strip Contacts Receptacle	Surface Mount	8 çin	0.203 çm	0.5 mm	0.02 in	3 mm
Hirose Electric USA, Inc. DF12C(3.0)-36DS-0.5V(81)	0.087 in	2.2 mm	Gold	36	2	Center Strip Contacts Receptacle	Surface Mount	8 çin	0.203 çm	0.5 mm	0.02 in	3 mm
Hirose Electric USA, Inc. DF12C(3.0)-32DS-0.5V(81)	0.087 in	2.2 mm	Gold		2	Center Strip Contacts Receptacle	Surface Mount	8 çin	0.203 çm	0.5 mm	0.02 in	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
