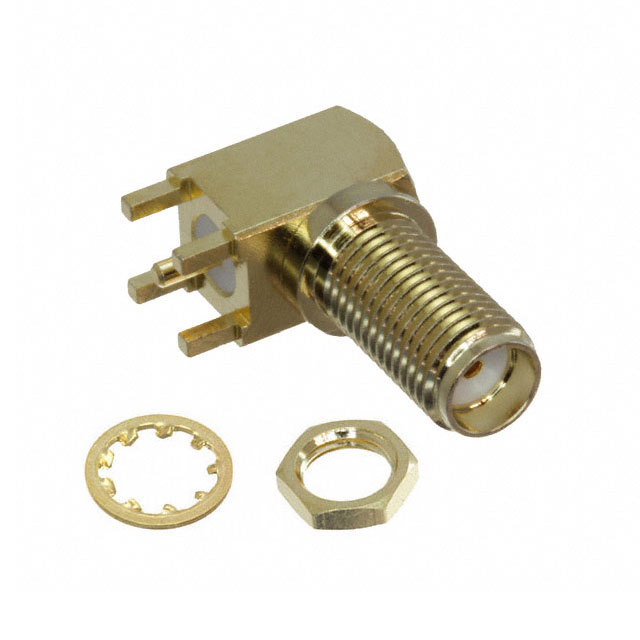

RF2-49B-T-00-50-G-HDW

Active

Adam Tech

RF SMA CONNECTOR

Search across all available documentation for this part.

Active

Adam Tech

RF SMA CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	RF2-49B-T-00-50-G-HDW

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Code B
Frequency - Max [Max]	6000 MHz
Housing Color	White
Impedance	50 Ohms
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Mounting Type	Number of Ports	Body Finish	Voltage Rating	Mounting Feature	Housing Color	Center Contact Material	Center Contact Plating	Connector Style	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Features	Body Material	Frequency - Max [Max]	Shield Termination	Contact Termination	Connector Type
Adam Tech RF2-49B-T-00-50-G-HDW	Through Hole Right Angle	1	Gold	335 V	Bulkhead - Rear Side Nut	White	Brass	Gold	SMA	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	50 Ohms	Code B	Brass	6000 MHz	Solder	Solder	Female Socket Jack
