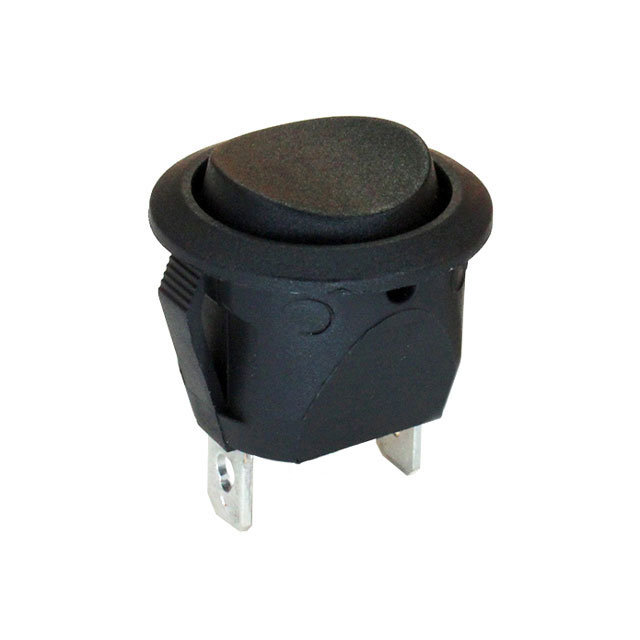

RR11122AC

Active

CIT Relay and Switch

SWITCH ROCKER SPST 15A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH ROCKER SPST 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RR11122AC

Actuator Marking	No Marking
Actuator Type	Round
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	On-Off
Termination Style	Solder, Quick Connect
Termination Style	4.7 mm, 0.187 in
Voltage Rating - AC	125 V

Part	Electrical Life	Circuit	Panel Cutout Dimensions [diameter]	Mounting Type	Current Rating (Amps)	Actuator Type	Switch Function	Color - Actuator/Cap	Actuator Marking	Voltage Rating - AC	Termination Style	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
CIT Relay and Switch RR11122AC	10000 Cycles	SPST	20.2 mm	Panel Mount Snap-In	15 A	Round	On-Off	Black	No Marking	125 V	Quick Connect Solder	0.187 in 4.7 mm	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 15A (AC) 125 V Panel Mount, Snap-In
