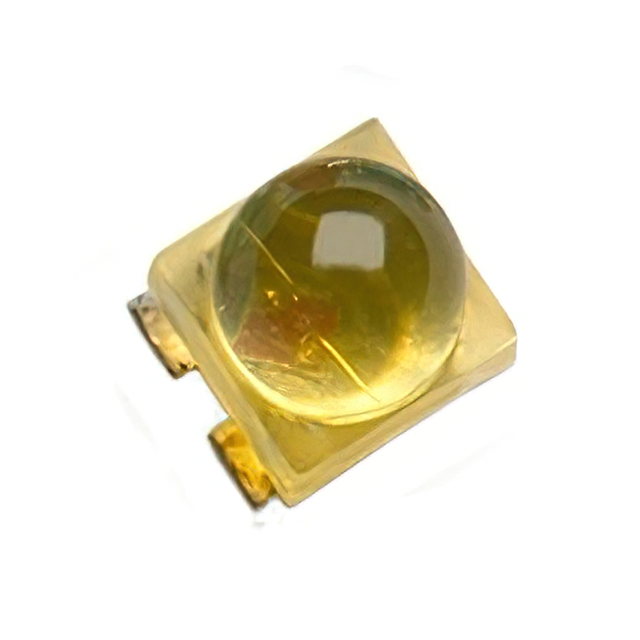

ALMD-EL3E-WY002

Active

Broadcom Limited

LED AMBER CLEAR 4SMD

Search across all available documentation for this part.

Active

Broadcom Limited

LED AMBER CLEAR 4SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current - Test	Wavelength - Peak	Color	Mounting Type	Viewing Angle	Lens Style	Height (Max) [Max] [z]	Package / Case	Lens Transparency	Millicandela Rating	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Configuration
Broadcom Limited ALMD-EL3D-WXL02	20 mA	594 nm	Amber	Surface Mount	30 °	Round with Domed Top	7 mm	4-SMD Gull Wing	Clear	7400 mcd	4-SMD	2.1 V	4.2 mm	4.2 mm	590 nm
Broadcom Limited ALMD-EL3D-WY002	20 mA	594 nm	Amber	Surface Mount	30 °	Round with Domed Top	7 mm	4-SMD Gull Wing	Clear	8750 mcd	4-SMD	2.1 V	4.2 mm	4.2 mm	590 nm
Broadcom Limited ALMD-EL3E-WY002	20 mA	594 nm	Amber	Surface Mount	30 °	Round with Domed Top	7 mm	4-SMD Gull Wing		8750 mcd	4-SMD	2.1 V	4.2 mm	4.2 mm	590 nm
Broadcom Limited ALMD-EL3M-VX002
Broadcom Limited ALMD-EL3E-XYK02	20 mA	594 nm	Amber	Surface Mount	30 °	Round with Domed Top	7 mm	4-SMD Gull Wing		9600 mcd	4-SMD	2.1 V	4.2 mm	4.2 mm	590 nm
Broadcom Limited ALMD-EL3D-WXK02	20 mA	594 nm	Amber	Surface Mount	30 °	Round with Domed Top	7 mm	4-SMD Gull Wing	Clear	7400 mcd	4-SMD	2.1 V	4.2 mm	4.2 mm	590 nm
Broadcom Limited ALMD-EL3C-VX002
Broadcom Limited ALMD-EL3D-XYK02	20 mA	594 nm	Amber	Surface Mount	30 °	Round with Domed Top	7 mm	4-SMD Gull Wing	Clear	9600 mcd	4-SMD	2.1 V	4.2 mm	4.2 mm	590 nm
Broadcom Limited ALMD-EL3E-WXK02	20 mA	594 nm	Amber	Surface Mount	30 °	Round with Domed Top	7 mm	4-SMD Gull Wing		7400 mcd	SMD	2.1 V	4.2 mm	4.2 mm	590 nm	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Amber 590nm LED Indication - Discrete 2.1V 4-SMD, Gull Wing
