09620250301

Active

HARTING Technology Group

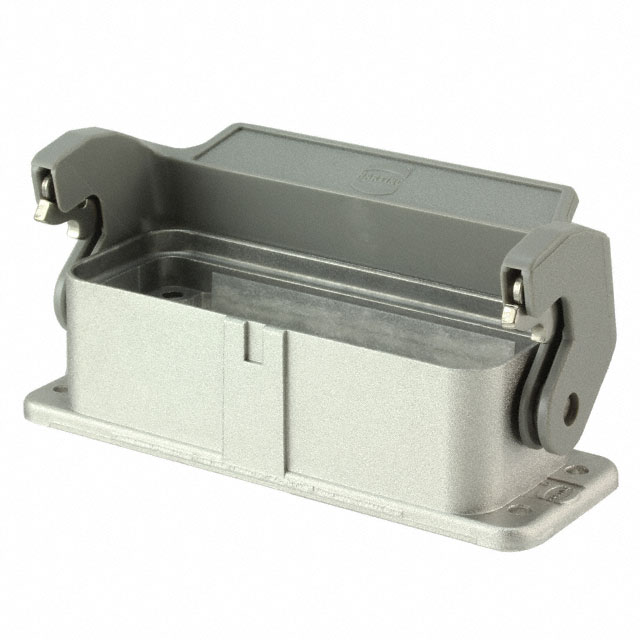

HAN EMC 25 BASE PANEL ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN EMC 25 BASE PANEL ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09620250301

Connector Type	Base - Panel Mount
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 A
Style	Bottom Entry

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Size	Style	Housing Material	Lock Location	Connector Type
HARTING Technology Group 09620250301	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	16 A	Bottom Entry	Aluminum Die Cast	Locking Clip (1) on Base Bottom	Base - Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 16A IP65 - Dust Tight, Water Resistant
