ATM13-2P-BM01

Active

Amphenol Sine Systems Corp

CONN HEADER R/A 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A Series Family

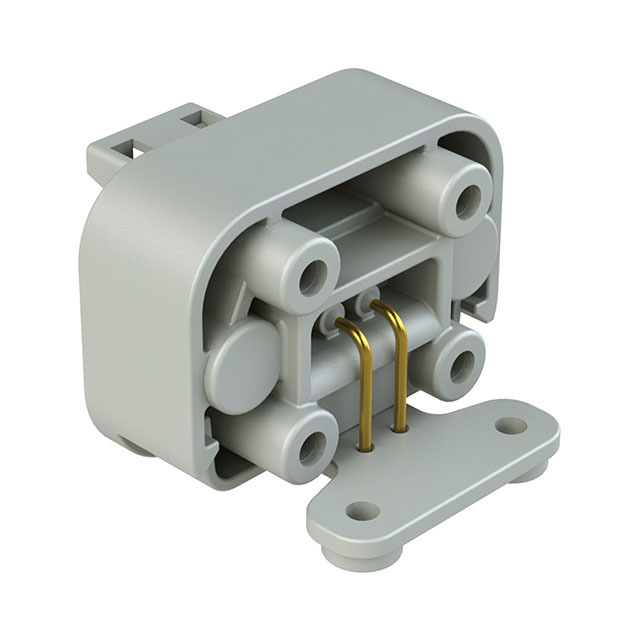

ATM13-2P-BM01

Active

Amphenol Sine Systems Corp

CONN HEADER R/A 2POS

Deep-Dive with AI

DocumentsDatasheet A Series Family

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATM13-2P-BM01

Applications	Industrial, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	7.5 A
Fastening Type	Latch Holder
Features	Board Guide, Mating Flange, Mounting Flange
Ingress Protection	IP67
Insulation Color	Gray
Insulation Height	1.063 in
Insulation Height	27 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

ATM13 Series

Part	Current Rating (Amps)	Features	Contact Shape	Applications	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Voltage Rating	Fastening Type	Contact Finish - Post	Insulation Color	Ingress Protection	Contact Type	Connector Type	Number of Rows	Contact Finish - Mating	Number of Positions Loaded	Insulation Material	Style	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Mounting Type	Shrouding	Contact Material	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post
Amphenol Sine Systems Corp ATM13-3P-BM01	7.5 A	Board Guide Mating Flange Mounting Flange	Circular	Automotive Industrial	0.12 in	3.05 mm	Solder	250 VDC	Latch Holder	Gold	Gray	IP67	Male Pin	Receptacle	1	Gold	All	Thermoplastic	Board to Cable/Wire	-55 °C	125 °C	1.063 in	27 mm	Through Hole Right Angle	Shrouded - 4 Wall	Copper Alloy
Amphenol Sine Systems Corp ATM13-12PB-GR01	7.5 A	Mounting Flange Sealed	Circular	Automotive Industrial	0.12 in	3.05 mm	Solder		Latch Holder	Gold	Black	IP69K	Male Pin	Receptacle	2	Gold	All	Thermoplastic	Board to Cable/Wire	-55 °C	155 °C	1.378 in	35 mm	Panel Mount Snap-In Through Hole Right Angle	Shrouded - 4 Wall	Copper Alloy	12	0.25 in	6.35 mm	4.2 mm	0.165 in
Amphenol Sine Systems Corp ATM13-08PC-BM04	7.5 A	Board Guide Mating Flange Mounting Flange Potting Wall	Circular	Automotive Industrial	0.12 in	3.05 mm	Solder	250 VDC	Latch Holder	Tin	Gray	IP67	Male Pin	Receptacle	2		All	Thermoplastic	Board to Cable/Wire	-55 °C	125 °C			Through Hole Right Angle	Shrouded - 4 Wall	Copper Alloy	8
Amphenol Sine Systems Corp ATM13-12PA-12PC-BM03	7.5 A	Mounting Flange Sealed	Circular	Automotive Industrial			Solder		Latch Holder	Tin	Black	IP67	Male Pin	Receptacle	2		All	Thermoplastic	Board to Cable/Wire	-55 °C	125 °C	1.378 in	35 mm	Panel Mount Snap-In Through Hole Right Angle	Shrouded - 4 Wall	Copper Alloy	12					2.84 mm	0.112 in
Amphenol Sine Systems Corp ATM13-12PC-BM04	7.5 A	Board Guide Mating Flange Mounting Flange Potting Wall	Circular	Automotive Industrial	0.12 in	3.05 mm	Solder	250 VDC	Latch Holder	Tin	Gray	IP67	Male Pin	Receptacle	2		All	Thermoplastic	Board to Cable/Wire	-55 °C	125 °C	1.303 in	33.1 mm	Through Hole Right Angle	Shrouded - 4 Wall	Copper Alloy	12
Amphenol Sine Systems Corp ATM13-08PC-BM02	7.5 A	Board Guide Mating Flange Mounting Flange Potting Wall	Circular	Automotive Industrial	0.12 in	3.05 mm	Solder	250 VDC	Latch Holder	Gold	Gray	IP67	Male Pin	Receptacle	2	Gold	All	Thermoplastic	Board to Cable/Wire	-55 °C	125 °C			Through Hole Right Angle	Shrouded - 4 Wall	Copper Alloy	8
Amphenol Sine Systems Corp ATM13-2P-BM01	7.5 A	Board Guide Mating Flange Mounting Flange	Circular	Automotive Industrial	0.12 in	3.05 mm	Solder	250 VDC	Latch Holder	Gold	Gray	IP67	Male Pin	Receptacle	1	Gold	All	Thermoplastic	Board to Cable/Wire	-55 °C	125 °C	1.063 in	27 mm	Through Hole Right Angle	Shrouded - 4 Wall	Copper Alloy	2
Amphenol Sine Systems Corp ATM13-12PB-R008	7.5 A	Mounting Flange Sealed	Circular	Automotive Industrial	0.12 in	3.05 mm	Solder		Latch Holder	Tin	Black	IP69K	Male Pin	Receptacle	2		All	Thermoplastic	Board to Cable/Wire	-55 °C	155 °C	1.378 in	35 mm	Panel Mount Snap-In Through Hole Right Angle	Shrouded - 4 Wall	Copper Alloy	12	0.25 in	6.35 mm	4.2 mm	0.165 in
Amphenol Sine Systems Corp ATM13-12PD-BM04	7.5 A	Board Guide Mating Flange Mounting Flange Potting Wall	Circular	Automotive Industrial	0.12 in	3.05 mm	Solder	250 VDC	Latch Holder	Tin	Gray	IP67	Male Pin	Receptacle	2		All	Thermoplastic	Board to Cable/Wire	-55 °C	125 °C	1.303 in	33.1 mm	Through Hole Right Angle	Shrouded - 4 Wall	Copper Alloy	12
Amphenol Sine Systems Corp ATM13-12PA-R008	7.5 A	Mounting Flange Sealed	Circular	Automotive Industrial	0.12 in	3.05 mm	Solder		Latch Holder	Tin	Black	IP69K	Male Pin	Receptacle	2		All	Thermoplastic	Board to Cable/Wire	-55 °C	155 °C	1.378 in	35 mm	Panel Mount Snap-In Through Hole Right Angle	Shrouded - 4 Wall	Copper Alloy	12	0.25 in	6.35 mm	4.2 mm	0.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.57
		10	$ 5.04
		25	$ 4.76
		40	$ 4.64
		150	$ 4.41
		300	$ 4.09

Description

General part information

ATM13 Series

Connector Header Through Hole, Right Angle 2 position

Documents

Technical documentation and resources

Datasheet

A Series Family

Datasheet
