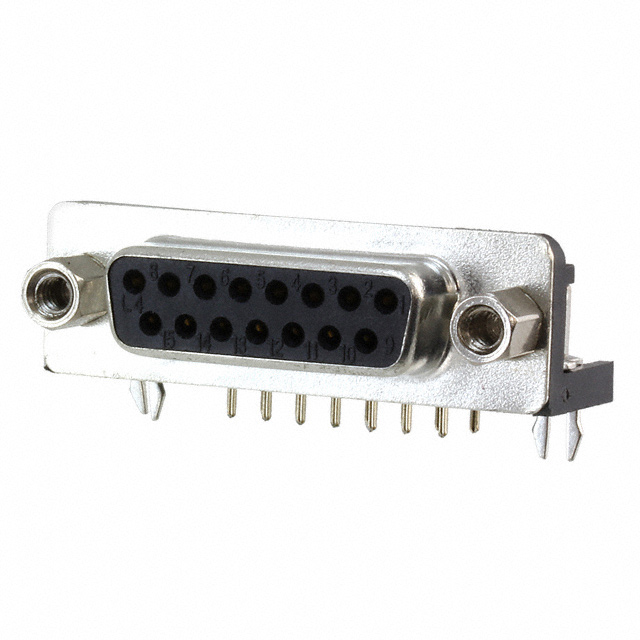

A-DF 15 A/KG-T2S

Active

Assmann WSW Components

CONN D-SUB RCPT 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A-DF 15 A/KG-T2S

Active

Assmann WSW Components

CONN D-SUB RCPT 15POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-DF 15 A/KG-T2S

Backset Spacing	0.319 in
Backset Spacing	8.1 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	250 VDC

A-DF 15 Series

Part	Color	Contact Finish Thickness	Dielectric Material	Flange Feature	Material Flammability Rating	Number of Positions	Shell Size, Connector Layout	Connector Type	Termination	Backset Spacing	Backset Spacing	Mounting Type	Number of Rows	Voltage Rating	Current Rating (Amps)	Connector Style	Contact Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Ingress Protection	Wire Gauge [Min]	Wire Gauge [Max]	Shell Material, Finish	Features
Assmann WSW Components A-DF 15 A/KG-T2S	Black	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Female Screwlock (4-40) Mating Side	UL94 V-0	15	2	Receptacle Female Sockets	Solder	0.319 in	8.1 mm	Through Hole Right Angle	2	250 VDC	3 A	D-Sub	Signal	Copper Alloy	105 ░C	-55 °C	Gold
Assmann WSW Components A-DF 15 PP-WP	Black		Glass Filled Nylon Polyamide (PA)	Female Screwlock Mating Side		15	2	Receptacle Female Sockets	Solder			Panel Mount Through Hole	2			D-Sub	Signal	Copper Alloy			Gold	IP67 - Dust Tight Waterproof
Assmann WSW Components A-DF 15 PP/Z-BK	Black	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	UL94 V-0	15	2	Receptacle Female Sockets	Solder			Through Hole	2	250 VAC	3 A	D-Sub	Signal	Copper Alloy	105 ░C	-55 °C	Gold
Assmann WSW Components A-DF 15 LL-WP	Black		Glass Filled Nylon Polyamide (PA)	Female Screwlock Mating Side		15	2	Receptacle Female Sockets					2			D-Sub	Signal	Copper Alloy			Gold	IP67 - Dust Tight Waterproof	22 AWG	26 AWG
Assmann WSW Components A-DF 15 PP-F	Black	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	UL94 V-0	15	2	Receptacle Female Sockets	Solder			Through Hole	2	250 VDC	3 A	D-Sub	Signal	Copper Alloy	85 °C	-20 C	Gold				Steel	Filter
Assmann WSW Components A-DF 15 LL/Z	White	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	UL94 V-0	15	2	Receptacle Female Sockets				Free Hanging (In-Line)	2	250 VDC	3 A	D-Sub	Signal	Brass	105 ░C	-55 °C	Gold				Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.62
		10	$ 1.23
		25	$ 1.11
		40	$ 1.05
		80	$ 0.97
		230	$ 0.87
		440	$ 0.81
		945	$ 0.75
		2400	$ 0.68

Description

General part information

A-DF 15 Series

15 Position D-Sub Receptacle, Female Sockets Connector
