Q-0400J00052.5M

Active

Amphenol Custom Cable

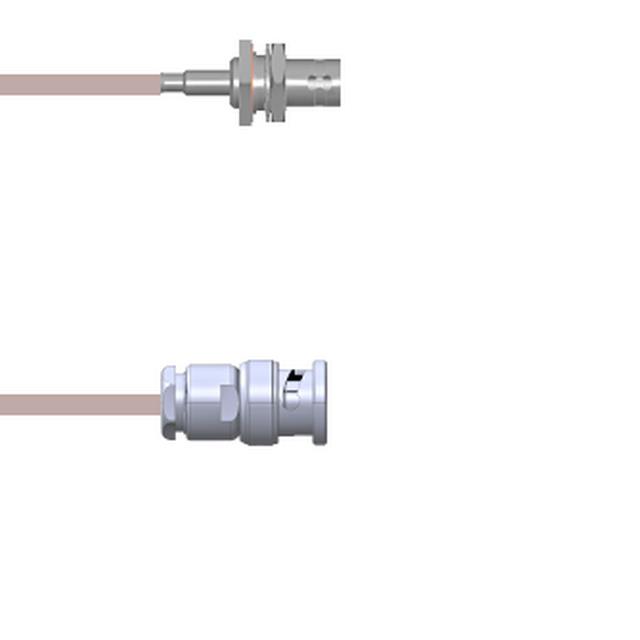

CBL ASSY BNC JACK TO PLUG 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0400J00052.5M

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO PLUG 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0400J00052.5M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-0400J0 Series

Part	Overall Impedance	2nd Contact Gender	Color	Frequency - Max [Max]	1st Connector	1st Connector Mounting Type	Cable Type	Length	Length	Length	2nd Connector Mounting Type	2nd Connector	1st Connector Mounting Feature	Style	1st Contact Gender	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-0400J0003048i	50 Ohms	Male	Black	4 GHz	BNC Jack	Panel Mount	RG-174	1200 mm	4 ft	48 in	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	BNC to BNC	Female	Shielded
Amphenol Custom Cable Q-0400J0005006i	50 Ohms	Male	Copper	4 GHz	BNC Jack	Panel Mount	RG-316	152.4 mm		6 in	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	BNC to BNC	Female	Shielded
Amphenol Custom Cable Q-0400J0005.25M	50 Ohms	Male	Copper	4 GHz	BNC Jack	Panel Mount	RG-316				Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	BNC to BNC	Female	Shielded	9.843 "	250 mm
Amphenol Custom Cable Q-0400J0003.25M	50 Ohms	Male	Black	4 GHz	BNC Jack	Panel Mount	RG-174				Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	BNC to BNC	Female	Shielded	9.843 "	250 mm
Amphenol Custom Cable Q-0400J0005060i	50 Ohms	Male	Copper	4 GHz	BNC Jack	Panel Mount	RG-316	1.5 m	5 ft	5 '	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	BNC to BNC	Female	Shielded
Amphenol Custom Cable Q-0400J0005072i	50 Ohms	Male	Copper	4 GHz	BNC Jack	Panel Mount	RG-316	1.8 m	6 ft	72 in	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	BNC to BNC	Female	Shielded
Amphenol Custom Cable Q-0400J00052.5M	50 Ohms	Male	Copper	4 GHz	BNC Jack	Panel Mount	RG-316	2.5 m	8.2 '	98.4 in	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	BNC to BNC	Female	Shielded
Amphenol Custom Cable Q-0400J00030.5M	50 Ohms	Male	Black	4 GHz	BNC Jack	Panel Mount	RG-174	50 cm		19.69 "	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	BNC to BNC	Female	Shielded
Amphenol Custom Cable Q-0400J0005012i	50 Ohms	Male	Copper	4 GHz	BNC Jack	Panel Mount	RG-316	304.8 mm		12 "	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	BNC to BNC	Female	Shielded
Amphenol Custom Cable Q-0400J0003108i	50 Ohms	Male	Black	4 GHz	BNC Jack	Panel Mount	RG-174	2.7 m	9 ft	108 in	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	BNC to BNC	Female	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 94.98
		25	$ 88.45
		50	$ 81.91
		100	$ 76.31
		250	$ 71.65

Description

General part information

Q-0400J0 Series

Cable Assembly Coaxial BNC to BNC RG-316 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
