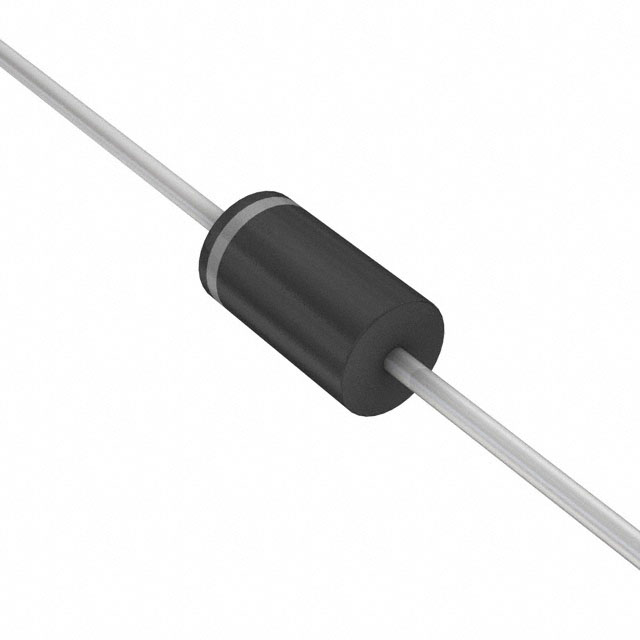

1N5820
ObsoleteSTMicroelectronics
SCHOTTKY DO201 20V 3A 150C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1N5820
ObsoleteSTMicroelectronics
SCHOTTKY DO201 20V 3A 150C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N5820 |
|---|---|
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage @ Vr | 2 mA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | 150 °C |
| Package / Case | DO-201AD, Axial |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DO-201AD |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 475 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 51.86 | |
| 1700 | $ 0.15 | |||
| 3400 | $ 0.13 | |||
| 5100 | $ 0.12 | |||
| 8500 | $ 0.10 | |||
| 11900 | $ 0.10 | |||
| 17000 | $ 0.10 | |||
| 42500 | $ 0.10 | |||
| 85000 | $ 0.09 | |||
| Cut Tape (CT) | 1 | $ 0.60 | ||
| 10 | $ 0.31 | |||
| 25 | $ 0.32 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.17 | |||
| Tape & Reel (TR) | 2500 | $ 0.14 | ||
| 6250 | $ 0.14 | |||
| 12500 | $ 0.12 | |||
| 31250 | $ 0.12 | |||
| 62500 | $ 0.11 | |||
Description
General part information
1N58 Series
Diode 20 V 3A Through Hole DO-201AD
