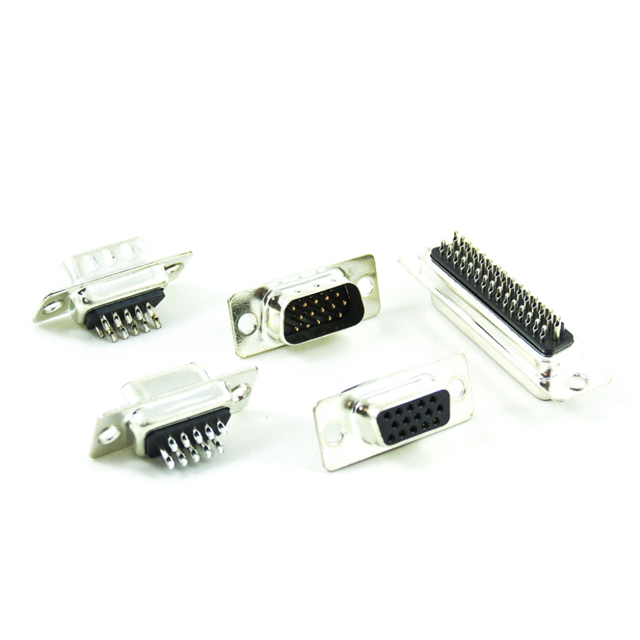

7917-15FTBG00A

Active

Oupiin

CONN D-SUB HD RCPT 15P SLDR CUP

Search across all available documentation for this part.

Active

Oupiin

CONN D-SUB HD RCPT 15P SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	7917-15FTBG00A

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density

Part	Flange Feature	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Type	Number of Positions	Material Flammability Rating	Contact Material	Connector Style	Mounting Type	Contact Finish	Number of Rows	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Features
Oupiin 7917-15FTBG00A	Housing/Shell (Unthreaded)	Flash	105 ░C	-55 °C	Black	Signal	15	UL94 V-0	Brass	D-Sub High Density	Free Hanging (In-Line)	Gold	3	Polybutylene Terephthalate (PBT)	DE E	1	High Density	Receptacle Female Sockets
Oupiin 7917-15MTBG00A	Housing/Shell (Unthreaded)	Flash	105 ░C	-55 °C	Black	Signal	15	UL94 V-0	Brass	D-Sub High Density	Free Hanging (In-Line)	Gold	3	Polybutylene Terephthalate (PBT)	DE E	1	High Density	Male Pins Plug	Grounding Indents

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
