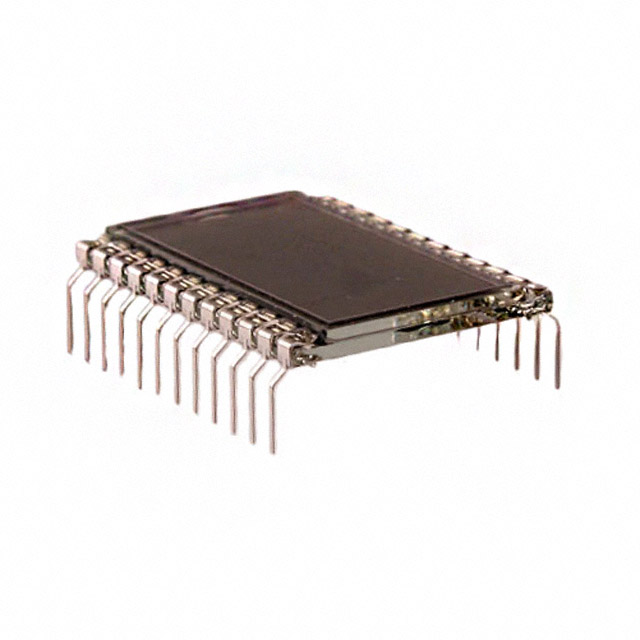

VI-321-DP-RC-S
ActiveVaritronix
LCD MOD 3 DIG 3 X 1 REFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VI-321-DP-RC-S
ActiveVaritronix
LCD MOD 3 DIG 3 X 1 REFLECTIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VI-321-DP-RC-S |
|---|---|
| Backlight | Without Backlight |
| Character Format | 7-Segment |
| Character Size [y] | 6.35 mm |
| Character Size [z] | 8.89 mm |
| Display Format [x] | 3 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | TN - Twisted Nematic |
| Number of Characters [custom] | 3 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Outline L x W x H [x] | 30.48 mm |
| Outline L x W x H [y] | 22.86 mm |
| Outline L x W x H [z] | 2.8 mm |
| Viewing Area [x] | 25.4 mm |
| Viewing Area [y] | 12.7 mm |
| Voltage - Supply | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.28 | |
| 10 | $ 3.00 | |||
| 100 | $ 2.63 | |||
Description
General part information
VI-321 Series
Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 30.48mm x 22.86mm x 2.80mm
