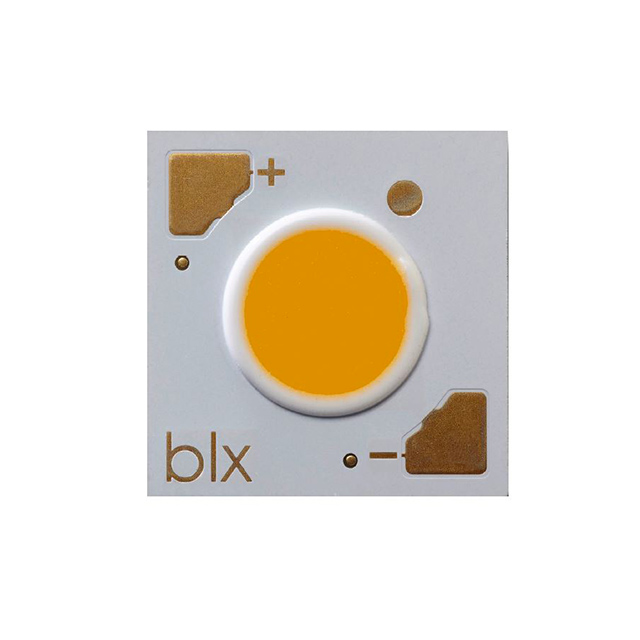

BXRH-35A3001-D-23

Obsolete

BRIDGELUX

LED COB H9 ARRAY WM WHT SQ 3500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRH-35A3001-D-23

Obsolete

BRIDGELUX

LED COB H9 ARRAY WM WHT SQ 3500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRH-35A3001-D-23

CCT (K)	3500 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	93
Current - Max [Max]	1.4 A
Current - Test	1 A
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	9.5 mm
Lumens/Watt @ Current - Test	84 lm/W
Luminous Flux @ Current/Temperature	3074 lm
Type	Chip On Board (COB)
Viewing Angle	112 °
Voltage - Forward (Vf) (Typ)	36.6 V

BXRH-35 Series

Part	Lens Type	Lumens/Watt @ Current - Test	Height [z]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Current - Test	Configuration	CCT (K)	CRI (Color Rendering Index)	Type	Luminous Flux @ Current/Temperature	Color	Light Emitting Surface (LES) [diameter]	Size / Dimension [x]	Size / Dimension [y]
BRIDGELUX BXRH-35E1000-B-83	Flat	144 lm/W	1.63 mm	120 °	36.6 V	600 mA	350 mA	Square	3500 K	80	Chip On Board (COB)	1839 lm	Warm White	6.6 mm
BRIDGELUX BXRH-35A3001-D-23	Flat	84 lm/W	1.7 mm	112 °	36.6 V	1.4 A	1 A	Square	3500 K	93	Chip On Board (COB)	3074 lm	Warm White	9.5 mm
BRIDGELUX BXRH-35G0600-B-83	Flat	114 lm/W	1.63 mm	120 °	18.3 V	600 mA	350 mA	Square	3500 K	90	Chip On Board (COB)		Warm White	4.8 mm	12.5 mm	12.5 mm
BRIDGELUX BXRH-35A3001-D-83	Flat		1.63 mm	120 °	36.4 V	960 mA		Square	3500 K	93	Chip On Board (COB)		Warm White	9.2 mm	19 mm	19 mm
BRIDGELUX BXRH-35E0300-B-83	Flat	144 lm/W	1.63 mm	120 °	17.6 V	360 mA		Square	3500 K	80	Chip On Board (COB)	405 lm	Warm White	3.8 mm	12.5 mm	12.5 mm
BRIDGELUX BXRH-35H0300-A-83	Flat	106 lm/W	1.63 mm	120 °	35.2 V	180 mA	80 mA	Square	3500 K	97	Chip On Board (COB)	299 lm	Warm White	3.8 mm	12.5 mm	12.5 mm
BRIDGELUX BXRH-35S1001-G-72	Flat	101 lm/W	1.63 mm	120 °	18.2 V	960 mA		Square	3500 K	98	Chip On Board (COB)	1287 lm	Warm White	6.6 mm
BRIDGELUX BXRH-35E3000-D-83	Flat	145 lm/W	1.63 mm	120 °	36.6 V	1.2 A		Square	3500 K	80	Chip On Board (COB)	3715 lm	Warm White	8.8 mm	19 mm	19 mm
BRIDGELUX BXRH-35G1000-G-83	Flat	118 lm/W	1.63 mm	120 °	18.3 V	1.2 A		Square	3500 K	90	Chip On Board (COB)	1512 lm	Warm White	6.6 mm
BRIDGELUX BXRH-35H1000-B-83	Flat	106 lm/W	1.63 mm	120 °	36.6 V	600 mA	350 mA	Square	3500 K	97	Chip On Board (COB)	1358 lm	Warm White	6.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRH-35 Series

LED Lighting COBs Engines Modules Chip On Board (COB) H9 Array White, Warm Square
