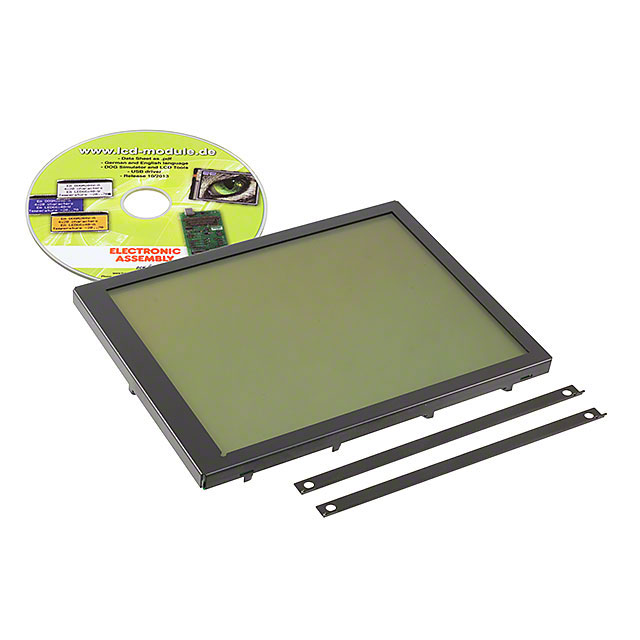

EA EDIP320J-8LW
ActiveDisplay Visions
GRAPHIC DISPLAY FSTN BLACK 5.7"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EA EDIP320J-8LW
ActiveDisplay Visions
GRAPHIC DISPLAY FSTN BLACK 5.7"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EA EDIP320J-8LW |
|---|---|
| Background Color | White |
| Backlight | LED - White |
| Diagonal Screen Size | 5.7 in |
| Diagonal Screen Size | 144.78 mm |
| Display Mode | Transflective |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Dot Pitch [x] | 0.36 mm |
| Dot Pitch [y] | 0.36 mm |
| Dot Pixels | QVGA |
| Dot Pixels [x] | 320 pixels |
| Dot Pixels [y] | 240 pixels |
| Dot Size [x] | 0.34 mm |
| Dot Size [y] | 0.34 mm |
| Graphics Color | Black |
| Interface | I2C, SPI, RS-232 |
| Viewing Area [x] | 121 mm |
| Viewing Area [y] | 92.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 259.46 | |
| 10 | $ 249.48 | |||
Description
General part information
EAEDIP320 Series
Graphic LCD Display Module Transflective Black FSTN - Film Super-Twisted Nematic I2C, RS-232, SPI 5.7" (144.78mm) 320 x 240 (QVGA)
