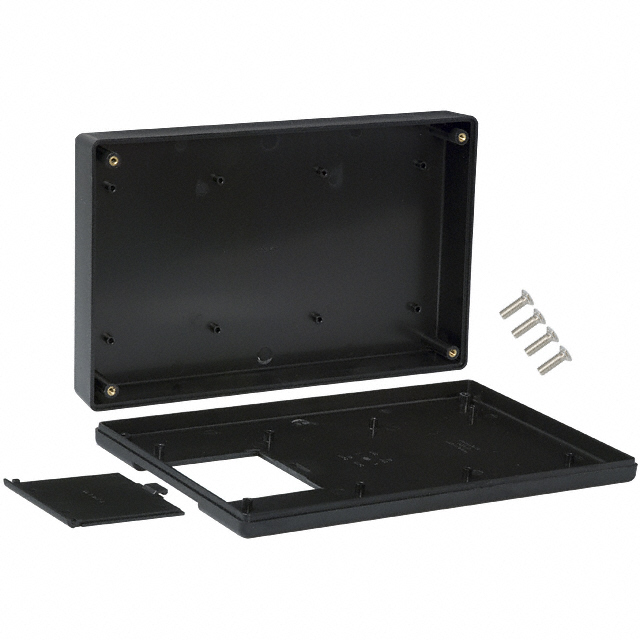

1599KBKBAT

Active

Hammond Manufacturing

BOX PLASTIC BLK 8.66"L X 5.51"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1599 Hand Held Series and Accessories

1599KBKBAT

Active

Hammond Manufacturing

BOX PLASTIC BLK 8.66"L X 5.51"W

Deep-Dive with AI

Documents1599 Hand Held Series and Accessories

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1599KBKBAT

Area (L x W)	47.7 in˛
Area (L x W)	308 cm˛
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Height [z]	1.575 in
Height [z]	40 mm
Material	ABS
Material Flammability Rating	UL94 V-0
Ratings	IP54
Size / Dimension [x]	8.661 in
Size / Dimension [x]	219.99 mm
Size / Dimension [y]	5.512 in
Size / Dimension [y]	140 mm
Weight	0.653 lb
Weight	296.2 g

1599 Series

Part	Area (L x W) [custom]	Area (L x W) [custom]	Ratings	Height [z]	Height [z]	Container Type	Color	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material Flammability Rating	Material	Thickness	Thickness	Weight	Weight	Area (L x W)	Area (L x W)	Design
Hammond Manufacturing 1599TABMBKBAT	230 cm˛	35.6 in˛	IP54	27 mm	1.063 in	Box	Black	9V and AA Battery Compartment Flame Retardant PCB Supports	5.315 in	6.692 in	169.98 mm	135 mm	UL94 V-0	ABS	0.225 in	5.72 mm
Hammond Manufacturing 1599HBKBAT			IP54	44.75 mm	1.762 in	Box	Black				8.661 in 219.99 mm	4.331 in 110.01 mm	UL94 V-0	ABS			252.2 g	0.556 lb	37.5 in˛	242 cm˛	Hand Held Split Sides
Hammond Manufacturing 1599HGY			IP54	44.75 mm	1.762 in	Box	Gray	Card Guides Flame Retardant PCB Supports			8.661 in 219.99 mm	4.331 in 110.01 mm	UL94 V-0	ABS			246.75 g	0.544 lb	37.5 in˛	242 cm˛	Hand Held Split Sides
Hammond Manufacturing 1599KSTLGY				46 mm	1.811 in	Box	Gray	PCB Supports	5.512 in	8.661 in	219.99 mm	140 mm		ABS			226.8 g	0.5 lbs	47.7 in˛	308 cm˛	Hand Held Slanted Top Split Sides
Hammond Manufacturing 1599BSGY			IP54	25.5 mm	1.004 in	Box	Gray	Card Guides PCB Supports	2.559 in	5.118 in	130 mm	65 mm		ABS			73.94 g	0.163 lb	13.1 in˛	85 cm˛	Hand Held Split Sides
Hammond Manufacturing 1599BBKBATCP			IP54	25.5 mm	1.004 in	Box	Black	Battery Door Card Guides Flame Retardant PCB Supports Pocket Clip	2.559 in	5.118 in	130 mm	65 mm	UL94 V-0	ABS					13.1 in˛	85 cm˛	Hand Held Split Sides
Hammond Manufacturing 1599KBKBAT			IP54	40 mm	1.575 in	Box	Black		5.512 in	8.661 in	219.99 mm	140 mm	UL94 V-0	ABS			296.2 g	0.653 lb	47.7 in˛	308 cm˛	Hand Held Split Sides
Hammond Manufacturing 1599KSGYBAT			IP54	40 mm	1.575 in	Box	Gray	Battery Door Card Guides PCB Supports	5.512 in	8.661 in	219.99 mm	140 mm		ABS			260.82 g	0.575 lb	47.7 in˛	308 cm˛	Hand Held Split Sides
Hammond Manufacturing 1599KBK			IP54	40 mm	1.575 in	Box	Black	Card Guides Flame Retardant PCB Supports	5.512 in	8.661 in	219.99 mm	140 mm	UL94 V-0	ABS			296.2 g	0.653 lb	47.7 in˛	308 cm˛	Hand Held Split Sides
Hammond Manufacturing 1599BGY			IP54	25.5 mm	1.004 in	Box	Gray	Card Guides Flame Retardant PCB Supports	2.559 in	5.118 in	130 mm	65 mm	UL94 V-0	ABS			73.94 g	0.163 lb	13.1 in˛	85 cm˛	Hand Held Split Sides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.61

Description

General part information

1599 Series

Box ABS Black Hand Held, Split Sides 8.661" L x 5.512" W (219.99mm x 140.00mm) X 1.575" (40.00mm)

Documents

Technical documentation and resources

1599 Hand Held Series and Accessories

Datasheet
