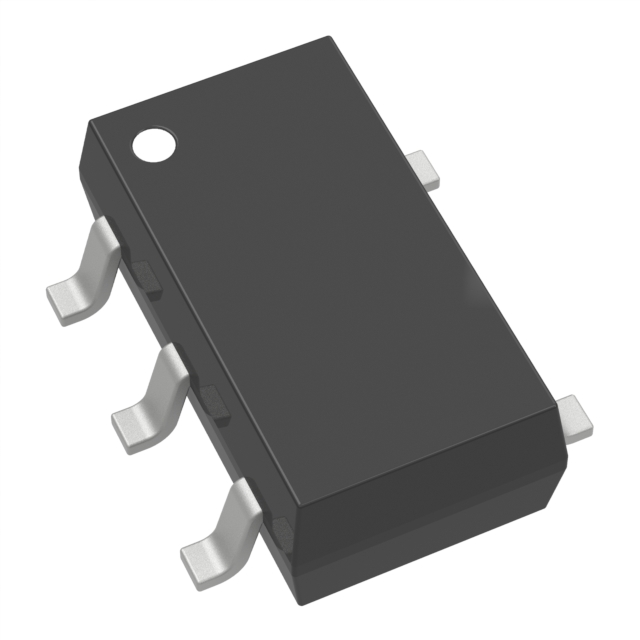

XC7SH125GW,125
ActiveFreescale Semiconductor - NXP
IC BUF NON-INVERT 5.5V 5TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XC7SH125GW,125
ActiveFreescale Semiconductor - NXP
IC BUF NON-INVERT 5.5V 5TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XC7SH125GW,125 |
|---|---|
| Current - Output High, Low [custom] | 8 mA |
| Current - Output High, Low [custom] | 8 mA |
| Logic Type | Buffer, Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 1 |
| Number of Elements | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 3-State |
| Package / Case | SC-70-5, 5-TSSOP, SOT-353 |
| Supplier Device Package | 5-TSSOP |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.59 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.49 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.59 | ||
| 10 | $ 0.52 | |||
| 25 | $ 0.49 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.25 | |||
| Tape & Reel (TR) | 3000 | $ 0.26 | ||
Description
General part information
XC7SH125 Series
Buffer, Non-Inverting 1 Element 1 Bit per Element 3-State Output 5-TSSOP
