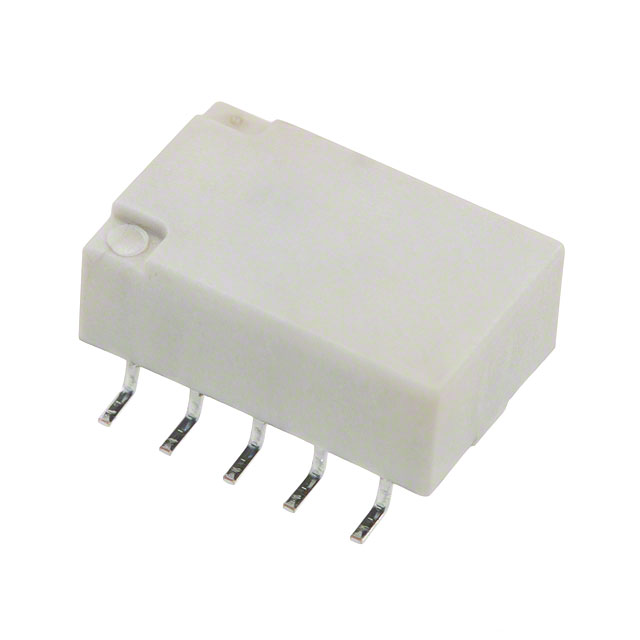

TQ2SA-9V

Active

Panasonic Electric Works

RELAY TELECOM DPDT 2A 9V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Standards Chart +2

TQ2SA-9V

Active

Panasonic Electric Works

RELAY TELECOM DPDT 2A 9V

Deep-Dive with AI

DocumentsHow to Read Date Codes Standards Chart +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TQ2SA-9V

Coil Current	15.5 mA
Coil Resistance	579 Ohms
Coil Type	Non Latching
Coil Voltage	9 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	440 W, 250 VA
Mounting Type	Surface Mount
Must Operate Voltage	6.75 VDC
Must Release Voltage	0.9 VDC
Operate Time	4 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	4 ms
Switching Voltage	125 VAC, 220 VDC
Termination Style	Gull Wing

TQ2SA Series

Part	Contact Form	Must Operate Voltage	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Must Release Voltage	Contact Material	Coil Resistance	Termination Style	Mounting Type	Release Time	Operate Time	Contact Rating (Current)	Relay Type	Coil Current	Switching Voltage	Coil Type	Approval Agency
Panasonic Electric Works TQ2SA-12V	DPDT (2 Form C)	9 VDC	250 VA 440 W	85 °C	-40 °C	12 VDC	1.2 VDC	Gold (Au) Silver Nickel (AgNi)	1030 Ohms	Gull Wing	Surface Mount	4 ms	4 ms	2 A	Telecom	11.7 mA	125 VAC 220 VDC	Non Latching
Panasonic Electric Works TQ2SA-L-9V-W	DPDT (2 Form C)	6.75 VDC	125 VA 220 W	85 °C	-40 °C	9 VDC		Gold (Au) Silver Nickel (AgNi)	1.157 kOhms	Gull Wing	Surface Mount	4 ms	4 ms	2 A	Telecom	7.8 mA	125 VAC 220 VDC	Latching Single Coil	CSA UR
Panasonic Electric Works TQ2SA-L-3V-Z	DPDT (2 Form C)	2.25 VDC	250 VA 440 W	85 °C	-40 °C			Gold (Au) Silver Nickel (AgNi)	129 Ohms	Gull Wing	Surface Mount	4 ms	4 ms	2 A	Telecom	23.3 mA	125 VAC 220 VDC	Latching Single Coil
Panasonic Electric Works TQ2SA-24V-Y	DPDT (2 Form C)	18 VDC	125 VA 220 W	85 °C	-40 °C	24 VDC	2.4 VDC	Gold (Au) Silver Nickel (AgNi)	2.88 kOhms	Gull Wing	Surface Mount	4 ms	4 ms	2 A	Telecom	8.3 mA	125 VAC 220 VDC	Non Latching	CSA UR
Panasonic Electric Works TQ2SA-L2-9V	DPDT (2 Form C)	6.75 VDC	250 VA 440 W	85 °C	-40 °C	9 VDC		Gold (Au) Silver Nickel (AgNi)	579 Ohms	Gull Wing	Surface Mount	4 ms	4 ms	2 A	Telecom	15.5 mA	125 VAC 220 VDC	Latching Dual Coil
Panasonic Electric Works TQ2SA-L-9V-X	DPDT (2 Form C)	6.75 VDC	250 VA 440 W	85 °C	-40 °C	9 VDC		Gold (Au) Silver Nickel (AgNi)	1.16 kOhms	Gull Wing	Surface Mount	4 ms	4 ms	0.5 A 2 A	Telecom	7.8 mA	125 VAC 220 VDC	Latching Single Coil
Panasonic Electric Works TQ2SA-6V-X	DPDT (2 Form C)	4.5 VDC	250 VA 440 W	85 °C	-40 °C		0.6 VDC	Gold (Au) Silver Nickel (AgNi)	257 Ohms	Gull Wing	Surface Mount	4 ms	4 ms	2 A	Telecom	23.3 mA	125 VAC 220 VDC	Non Latching
Panasonic Electric Works TQ2SA-4.5V-W	DPDT (2 Form C)	3.38 VDC	125 VA 220 W	85 °C	-40 °C	4.5 VDC	0.45 VDC	Gold (Au) Silver Nickel (AgNi)	145 Ohms	Gull Wing	Surface Mount	4 ms	4 ms	2 A	Telecom	31 mA	125 VAC 220 VDC	Non Latching	CSA UR
Panasonic Electric Works TQ2SA-6V-Z	DPDT (2 Form C)	4.5 VDC	250 VA 440 W	85 °C	-40 °C		0.6 VDC	Gold (Au) Silver Nickel (AgNi)	257 Ohms	Gull Wing	Surface Mount	4 ms	4 ms	2 A	Telecom	23.3 mA	125 VAC 220 VDC	Non Latching
Panasonic Electric Works TQ2SA-9V	DPDT (2 Form C)	6.75 VDC	250 VA 440 W	85 °C	-40 °C	9 VDC	0.9 VDC	Gold (Au) Silver Nickel (AgNi)	579 Ohms	Gull Wing	Surface Mount	4 ms	4 ms	2 A	Telecom	15.5 mA	125 VAC 220 VDC	Non Latching

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.25
		10	$ 3.04
		25	$ 2.71
		50	$ 2.57
		100	$ 2.44
		250	$ 2.17
		500	$ 2.03
		1000	$ 1.89
		5000	$ 1.83
