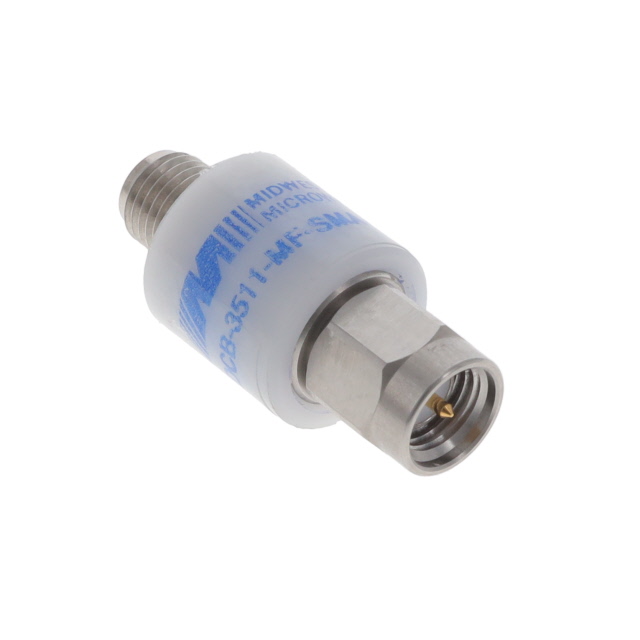

DCB-3511-MF-SMA-02
ActiveCinch Connectivity Solutions Midwest Microwave
CONN ADAPT JACK-PLUG SMA 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
DCB-3511-MF-SMA-02
ActiveCinch Connectivity Solutions Midwest Microwave
CONN ADAPT JACK-PLUG SMA 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DCB-3511-MF-SMA-02 |
|---|---|
| Adapter Series | SMA to SMA |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | SMA Plug, Male Pin |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.5 dB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 241.66 | |
| 10 | $ 223.94 | |||
| 26 | $ 215.88 | |||
Description
General part information
DCB-3511 Series
Adapter Coaxial Connector SMA Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
Documents
Technical documentation and resources
No documents available
