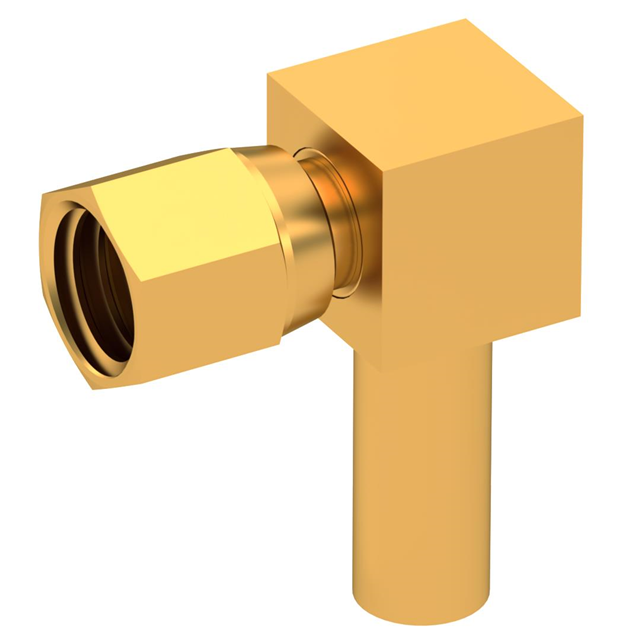

1105-1521-019

Active

Radiall USA, Inc.

SMC F RA NA CR

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC F RA NA CR

Technical Specifications

Parameters and characteristics for this part

Specification	1105-1521-019

Body Finish	Gold
Body Material	Brass
Cable Group	RD-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Dielectric Material	Voltage Rating	Connector Type	Connector Style	Shield Termination	Cable Group	Body Material	Center Contact Material	Contact Termination	Body Finish	Mounting Type	Mating Cycles	Center Contact Plating	Frequency - Max [Max]	Number of Ports	Impedance	Insertion Loss	Cable Group
Radiall USA, Inc. 1105-1521-019	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	335 V	Female Socket Plug	SMC	Crimp	RD-316	Brass	Beryllium Copper	Crimp	Gold	Free Hanging (In-Line) Right Angle	500	Gold	10 GHz	1	50 Ohms	0.5 dB
Radiall USA, Inc. 1105-1521-003	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	335 V	Female Socket Plug	SMC	Crimp	179 316 RG-174	Brass	Beryllium Copper	Crimp	Gold	Free Hanging (In-Line) Right Angle	500	Gold	10 GHz	1	50 Ohms	0.5 dB
Radiall USA, Inc. 1105-1521-002	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)		Female Socket Plug	SMC	Crimp	RG-178	Brass	Beryllium Copper	Crimp	Gold	Free Hanging (In-Line) Right Angle	500	Gold	10 GHz	1	50 Ohms	0.5 dB	196

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
