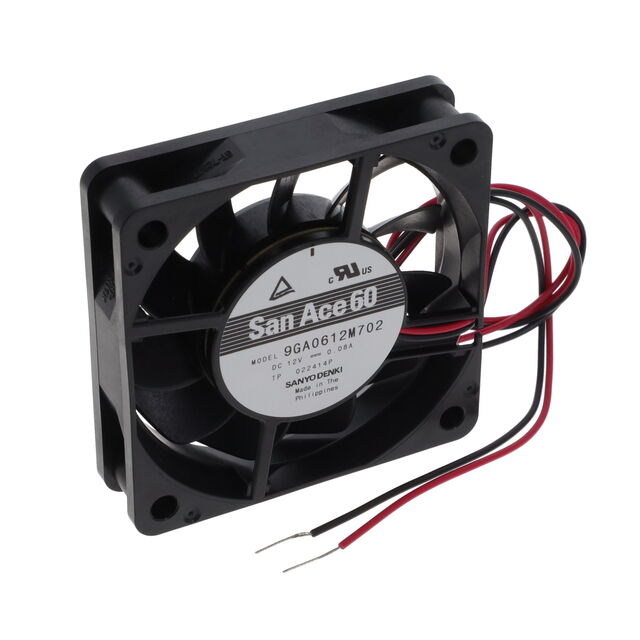

9GA0612M702

Active

Sanyo Denki America Inc.

FAN AXIAL 60X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Rotor Balancing

9GA0612M702

Active

Sanyo Denki America Inc.

FAN AXIAL 60X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GA0612M702

Air Flow	0.445 mł/min
Air Flow	15.9 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	28 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	3900 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.142 in H2O
Static Pressure	35.4 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	0.111 lb
Weight	50.35 g
Width [x]	15 mm

9GA0612 Series

Part	Noise	Voltage - Rated	Fan Type	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Current Rating (Amps)	Bearing Type	Lifetime @ Temp.	Air Flow	Air Flow	Weight	Weight	Width [y]	Material - Blade	Material - Frame	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	RPM	Termination	Features	Width [x]	Lifetime @ Temp.	Operating Temperature [Max]
Sanyo Denki America Inc. 9GA0612K1021	59 dB(A)	12 VDC	Tubeaxial	2.4 in H2O	597.8 Pa	-20 °C	70 °C	-20 C	70 °C	13.2 VDC	10.8 VDC	11.4 W	0.95 A	Ball	Varies Based on Temperature	53 CFM	1.48 mł/min	130.18 g	0.287 lb	38 mm	Plastic	Plastic	60 mm	60 mm	CSA TUV UL	14800 RPM	2 Wire Leads
Sanyo Denki America Inc. 9GA0612G9D001	43 dB	12 VDC	Tubeaxial	0.26 in H2O	64.8 Pa	-20 °C	60 °C	-20 C	60 °C	13.2 VDC	7 V	3.24 W	270 mA	Ball	Varies Based on Temperature	21.9 CFM	0.613 m³/min	35.38 g	0.078 lb	10 mm	Plastic	Plastic	60 mm	60 mm	CSA TUV UL	6200 RPM	3 Wire Leads	Locked Rotor Sensor
Sanyo Denki America Inc. 9GA0612K1011	59 dB(A)	12 VDC	Tubeaxial	2.4 in H2O	597.8 Pa	-20 °C	70 °C	-20 C	70 °C	13.2 VDC	10.8 VDC	11.4 W	0.95 A	Ball	Varies Based on Temperature	53 CFM	1.48 mł/min	130.18 g	0.287 lb	38 mm	Plastic	Plastic	60 mm	60 mm	CSA TUV UL	14800 RPM	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0612L702	17 dB	12 VDC	Tubeaxial	0.072 in H2O	17.9 Pa	-20 °C	70 °C	-20 C	70 °C	13.8 VDC	6 VDC	0.36 W	30 mA	Ball		10.9 CFM	0.305 mł/min	50.35 g	0.111 lb		Plastic	Plastic	60 mm	60 mm	CSA TUV UL	2800 RPM	2 Wire Leads		15 mm
Sanyo Denki America Inc. 9GA0612M702	28 dB	12 VDC	Tubeaxial	0.142 in H2O	35.4 Pa	-20 °C	70 °C	-20 C	70 °C	13.8 VDC	6 VDC			Ball		15.9 CFM	0.445 mł/min	50.35 g	0.111 lb		Plastic	Plastic	60 mm	60 mm	CSA TUV UL	3900 RPM	2 Wire Leads		15 mm
Sanyo Denki America Inc. 9GA0612G6001	43 dB	12 VDC	Tubeaxial	0.5 in H2O	124.5 Pa	-20 °C	70 °C	-20 C	70 °C	13.2 VDC	10.8 VDC	3.12 W	0.26 A	Ball	Varies Based on Temperature	31.1 CFM	0.871 mł/min	70.76 g	0.156 lb	20 mm	Plastic	Plastic	60 mm	60 mm	CSA TUV UL	6850 RPM	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0612P6S001	36 dB	12 VDC	Tubeaxial	0.326 in H2O	81.2 Pa	-10 °C		-10 °C	70 °C	13.2 VDC	10.8 VDC	1.8 W	150 mA	Ball		24.7 CFM	0.692 mł/min	69.85 g	0.154 lb	20 mm	Plastic	Plastic	60 mm	60 mm	CSA TUV UL	5500 RPM	4 Wire Leads	PWM Control Speed Sensor (Tach)		40000 Hrs	70 °C
Sanyo Denki America Inc. 9GA0612H7D01	34 dB(A)	12 VDC	Tubeaxial	0.223 in H2O	55.5 Pa	-20 °C	70 °C	-20 C	70 °C	13.8 VDC	6 VDC	1.2 W	100 mA	Ball	Varies Based on Temperature	19.7 CFM	0.552 m³/min	50.35 g	0.111 lb		Plastic	Plastic	60 mm	60 mm	CSA TUV UL	4900 RPM	3 Wire Leads	Locked Rotor Sensor	15 mm
Sanyo Denki America Inc. 9GA0612M6D001	18 dB(A)	12 VDC	Tubeaxial	0.08 in H2O	19.9 Pa	-20 °C	70 °C	-20 C	70 °C	13.2 VDC	10.8 VDC	600 mW	50 mA	Ball		12 CFM	0.336 mł/min	70.76 g	0.156 lb	20 mm	Plastic	Plastic	60 mm	60 mm	CSA TUV UL	2700 RPM	3 Wire Leads	Locked Rotor Sensor
Sanyo Denki America Inc. 9GA0612P1H03	52 dB	12 VDC	Tubeaxial	1.504 in H2O	374.6 Pa	-20 °C	70 °C	-20 C	70 °C	13.2 VDC	10.8 VDC	6.6 W	0.55 A	Ball		40.6 CFM	1.14 m³/min	130.18 g	0.287 lb	38 mm	Plastic	Plastic	60 mm	60 mm	CSA TUV UL	11500 RPM	4 Wire Leads	PWM Control Speed Sensor (Tach)		40000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.53
		10	$ 15.78
		25	$ 14.84
		50	$ 14.28
		100	$ 13.15
		300	$ 12.30
		500	$ 12.12

Description

General part information

9GA0612 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 15.9 CFM (0.445m³/min) 2 Wire Leads
