RF1-04A-D-02-50
ActiveAdam Tech

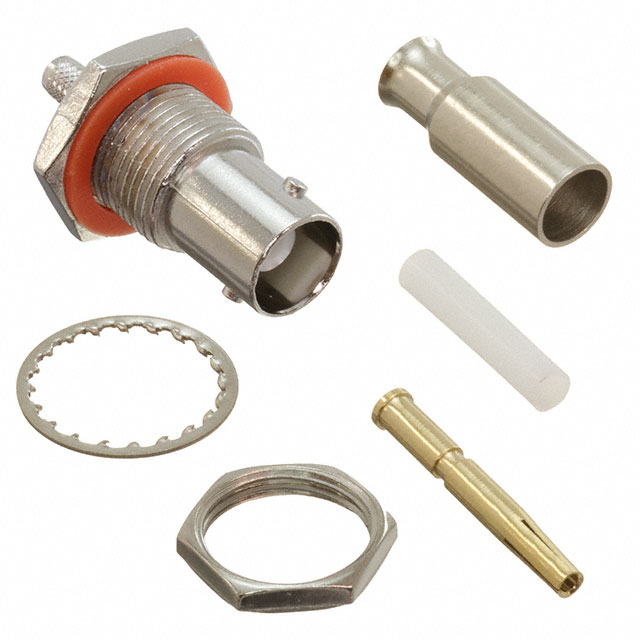

NIPT CRIMP BNC STRAIGHT JACK-RG5
Deep-Dive with AI
Search across all available documentation for this part.
RF1-04A-D-02-50
ActiveAdam Tech
NIPT CRIMP BNC STRAIGHT JACK-RG5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF1-04A-D-02-50 |
|---|---|
| Body Finish | Nickel |
| Body Material | Zinc |
| Center Contact Material | Brass |
| Center Contact Plating | Nickel |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) |
| Fastening Type | Bayonet Lock |
| Features | Code A |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Natural |
| Impedance | 50 Ohms |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.31 | |
| 10 | $ 3.30 | |||
| 25 | $ 2.97 | |||
| 50 | $ 2.75 | |||
| 100 | $ 2.55 | |||
| 250 | $ 2.31 | |||
| 500 | $ 2.15 | |||
| 1000 | $ 2.01 | |||
| 2500 | $ 1.84 | |||
Description
General part information
RF1-04 Series
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
