A17251-01

Active

Laird Technologies - Thermal Materials

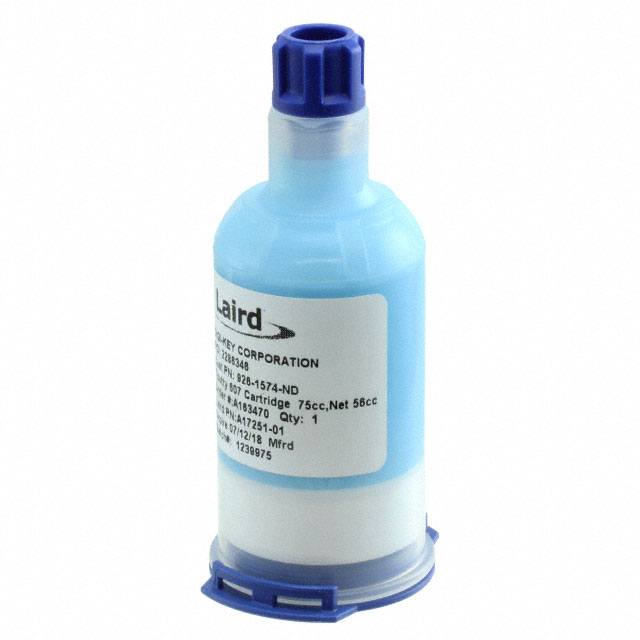

TPUTTY 607 75CC EFD CARTRIDGE

Search across all available documentation for this part.

Active

Laird Technologies - Thermal Materials

TPUTTY 607 75CC EFD CARTRIDGE

Technical Specifications

Parameters and characteristics for this part

Specification	A17251-01

Color	Blue
Features	Low Outgassing (ASTM E595)
Material Flammability Rating	UL94 V-0
Shelf Life	6 Months
Shelf Life Start	Date of Manufacture
Size / Dimension	75cc Cartridge
Thermal Conductivity	6.4 W/m-K
Type	Liquid Gap Filler
Usable Temperature Range [Max]	150 °C
Usable Temperature Range [Max]	302 °F
Usable Temperature Range [Min]	-40 °F
Usable Temperature Range [Min]	-40 °C

Part	Features	Usable Temperature Range [Max]	Usable Temperature Range [Min]	Usable Temperature Range [Min]	Usable Temperature Range [Max]	Type	Thermal Conductivity	Shelf Life Start	Color	Size / Dimension	Shelf Life	Material Flammability Rating	Size / Dimension
Laird Technologies - Thermal Materials A17251-01	Low Outgassing (ASTM E595)	150 °C	-40 °F	-40 °C	302 °F	Liquid Gap Filler	6.4 W/m-K	Date of Manufacture	Blue	75cc Cartridge	6 Months	UL94 V-0
Laird Technologies - Thermal Materials A17251-04	Low Outgassing (ASTM E595)	200 °C	-40 °F	-40 °C	200 °C	Liquid Gap Filler	6.4 W/m-K	Date of Manufacture	Blue		6 Months	UL94 V-0	600 cc
Laird Technologies - Thermal Materials A17251-03	Low Outgassing (ASTM E595)	150 °C	-40 °F	-40 °C	302 °F	Liquid Gap Filler	6.4 W/m-K	Date of Manufacture	Blue		6 Months	UL94 V-0	360 cc
Laird Technologies - Thermal Materials A17251-02	Low Outgassing (ASTM E595)	200 °C	-40 °F	-40 °C	200 °C	Liquid Gap Filler	6.4 W/m-K	Date of Manufacture	Blue	180cc Cartridge	6 Months	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Liquid Gap Filler 75cc Cartridge
