3241089
ActivePhoenix Contact
HOSE 1.417" ID POLY 3.28' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3241089
ActivePhoenix Contact
HOSE 1.417" ID POLY 3.28' BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3241089 |
|---|---|
| Color | Black |
| Diameter - Inside [diameter] | 1.417 in |
| Diameter - Inside [diameter] | 36 mm |
| Diameter - Outside [diameter] | 1.673 " |
| Diameter - Outside [diameter] | 42.49 mm |
| Environment Protection | UV Resistant |
| Features | Acid Resistant, Airtight, Self Extinguishing, Solvent Resistant |
| Length [x] | 1 m |
| Length [x] | 3.28 ft |
| Liquid Protection | True, True, True |
| Material | Nylon, Polyamide (PA), Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Type | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Corrugated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 15.42 | |
Description
General part information
WP-PA HF Series

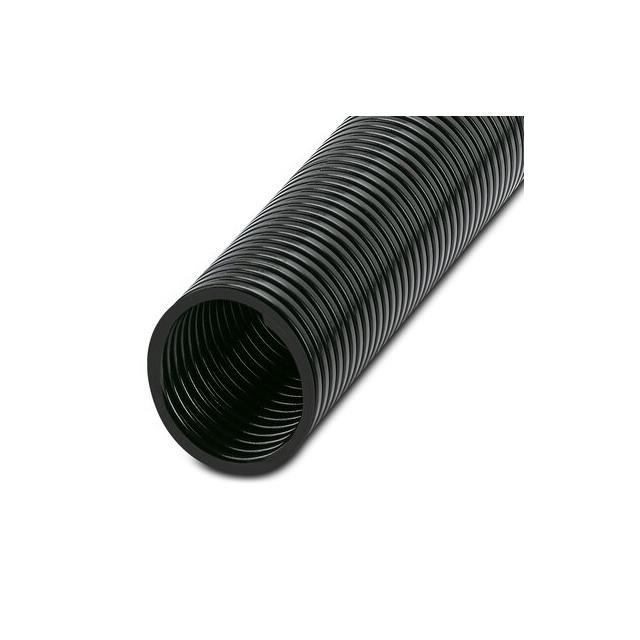

Black Polyamide (PA), Nylon, Halogen Free Convoluted, Corrugated Wire Loom, Protective Hose 1.417" (36.00mm) 3.28' (1.00m)
