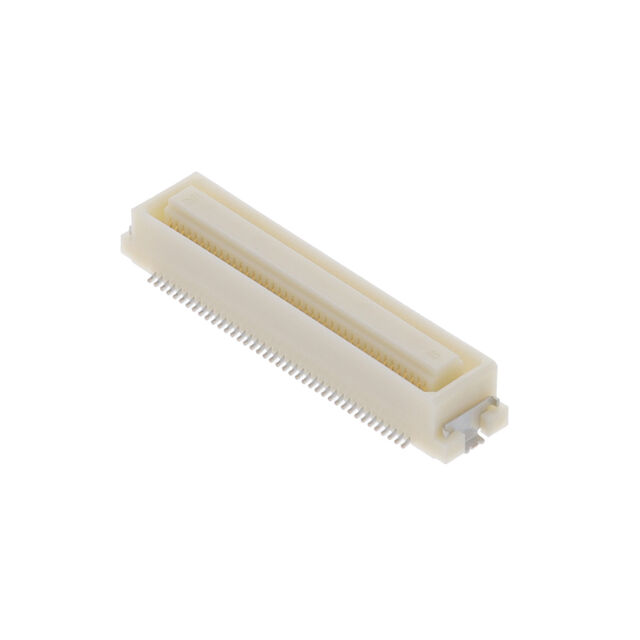

DF17B(4.0)-80DS-0.5V(57)
ActiveHirose Electric USA, Inc.
BOARD STACKING CONNECTOR, 80 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.02 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, WHITE INSULATOR, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DF17B(4.0)-80DS-0.5V(57)
ActiveHirose Electric USA, Inc.
BOARD STACKING CONNECTOR, 80 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.02 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, WHITE INSULATOR, RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF17B(4.0)-80DS-0.5V(57) |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.177 in |
| Height Above Board | 4.5 mm |
| Mated Stacking Heights | 6 mm, 8 mm, 6.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.51 | |
| 10 | $ 3.19 | |||
| 25 | $ 3.02 | |||
| 50 | $ 2.95 | |||
| 100 | $ 2.81 | |||
| 250 | $ 2.46 | |||
| 500 | $ 2.39 | |||
| Digi-Reel® | 1 | $ 3.51 | ||
| 10 | $ 3.19 | |||
| 25 | $ 3.02 | |||
| 50 | $ 2.95 | |||
| 100 | $ 2.81 | |||
| 250 | $ 2.46 | |||
| 500 | $ 2.39 | |||
| Tape & Reel (TR) | 1000 | $ 1.71 | ||
| 2000 | $ 1.65 | |||
| 3000 | $ 1.60 | |||
| 5000 | $ 1.54 | |||
Description
General part information
DF17B(4.0) Series
80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
