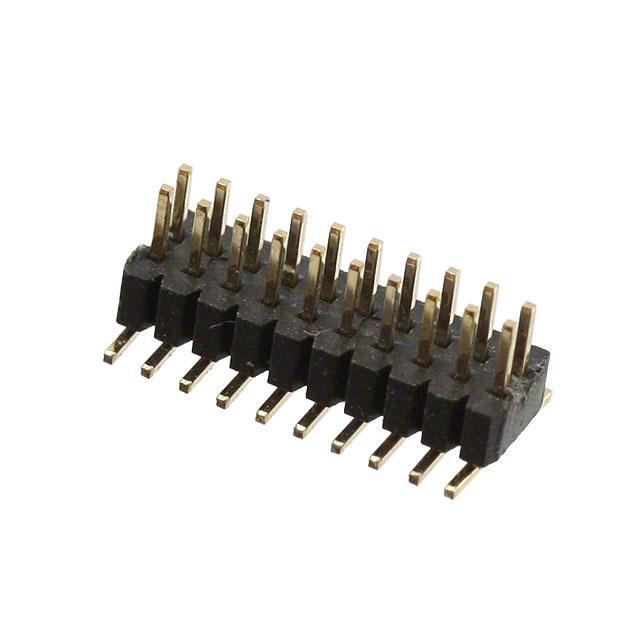

M40-3201045R

Active

Harwin Inc.

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, BLACK INSULATOR, RECEPTACLE, LEAD FREE

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, BLACK INSULATOR, RECEPTACLE, LEAD FREE

Technical Specifications

Parameters and characteristics for this part

Specification	M40-3201045R

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	1.8 mm
Contact Length - Mating	0.071 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Polyamide (PA6T), Glass Filled, Nylon 6T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

Part	Mounting Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Number of Positions	Contact Material	Pitch - Mating	Pitch - Mating	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Termination	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Fastening Type	Features	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Material	Contact Type	Number of Rows
Harwin Inc. M40-3201045R	Surface Mount	UL94 V-0	1.8 mm	0.071 in	1.5 mm	0.059 "	20	Brass	0.039 in	1 mm	Unshrouded	0.039 "	1 mm	Square	Solder	Gold	All	Flash	Push-Pull	Board Guide Pick and Place	Black	-40 °C	105 ░C	Header	Glass Filled Nylon 6T Polyamide (PA6T)	Male Pin	2
Harwin Inc. M40-3200445R	Surface Mount	UL94 V-0	1.8 mm	0.071 in	1.5 mm	0.059 "	8	Brass	0.039 in	1 mm	Unshrouded	0.039 "	1 mm	Square	Solder	Gold	All	Flash	Push-Pull	Board Guide Pick and Place	Black	-40 °C	105 ░C	Header	Glass Filled Nylon 6T Polyamide (PA6T)	Male Pin	2
Harwin Inc. M40-3200345R	Surface Mount	UL94 V-0	1.8 mm	0.071 in	1.5 mm	0.059 "	6	Brass	0.039 in	1 mm	Unshrouded	0.039 "	1 mm	Square	Solder	Gold	All	Flash	Push-Pull	Board Guide Pick and Place	Black	-40 °C	105 ░C	Header	Glass Filled Nylon 6T Polyamide (PA6T)	Male Pin	2
Harwin Inc. M40-3202545R	Surface Mount	UL94 V-0	1.8 mm	0.071 in	1.5 mm	0.059 "	50	Brass	0.039 in	1 mm	Unshrouded	0.039 "	1 mm	Square	Solder	Gold	All	Flash	Push-Pull	Board Guide Pick and Place	Black	-40 °C	105 ░C	Header	Glass Filled Nylon 6T Polyamide (PA6T)	Male Pin	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 20 position 0.039" (1.00mm)
