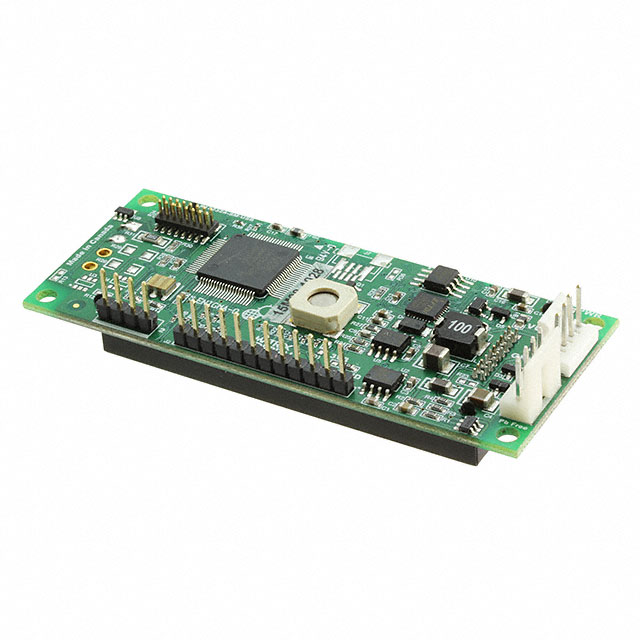

GLK12232A-25-SM-USB-GW-VS

Active

Matrix Orbital

LCD GRAPHIC DISPL 122X32 WHT/GRY

Search across all available documentation for this part.

Active

Matrix Orbital

LCD GRAPHIC DISPL 122X32 WHT/GRY

Technical Specifications

Parameters and characteristics for this part

Part	Backlight	Dot Size [y]	Dot Size [x]	Display Type	Graphics Color	Dot Pitch [x]	Dot Pitch [y]	Interface	Display Mode	Viewing Area [y]	Viewing Area [x]	Background Color
Matrix Orbital GLK12232-25-USB-FGW-E	LED - White	0.61 mm	0.53 mm	Monochrome	Gray	0.57 mm	0.65 mm	USB	Transmissive	20.5 mm	69.5 mm	White
Matrix Orbital GLK12232A-25-SM-TCI-LV		0.45 mm	0.4 mm	TFT - Color	Blue Green Red	0.44 mm	0.49 mm	I2C RS-232 TTL		15.64 mm	53.64 mm	Black
Matrix Orbital GLK12232A-25-SM-WB-VS	LED - White	0.45 mm	0.4 mm	Monochrome	White	0.44 mm	0.49 mm	I2C RS-232 TTL	Transmissive	18 mm	60.2 mm	Blue
Matrix Orbital GLK12232A-25-SM-WB-VS-E	LED - White	0.45 mm	0.4 mm	Monochrome	White	0.44 mm	0.49 mm	I2C RS-232 TTL	Transmissive	18 mm	60.2 mm	Blue
Matrix Orbital GLK12232-25-FGW	LED - White	0.62 mm	0.52 mm	Monochrome	Gray	0.53 mm	0.53 mm	I2C RS-232 TTL	Transmissive	20.5 mm	69.5 mm	White
Matrix Orbital GLK12232A-25-SM-TCI-LV-E		0.45 mm	0.4 mm	TFT - Color	Blue Green Red	0.44 mm	0.49 mm	I2C RS-232 TTL		15.64 mm	53.64 mm	Black
Matrix Orbital GLK12232A-25-SM-USB-GW-VS	LED - White	0.45 mm	0.4 mm	Monochrome	Gray	0.44 mm	0.49 mm	USB	Transmissive	18 mm	60.2 mm	White
Matrix Orbital GLK12232-25-USB-FGW	LED - White	0.61 mm	0.53 mm	Monochrome	Gray	0.57 mm	0.65 mm	USB	Transmissive	20.5 mm	69.5 mm	White
Matrix Orbital GLK12232A-25-SM-GW-LV		0.45 mm	0.4 mm	LCD - Monochrome	Gray	0.44 mm	0.49 mm	I2C RS-232 TTL	Transflective	15.64 mm	53.64 mm	White
Matrix Orbital GLK12232A-25-SM-GW-LV-E		0.45 mm	0.4 mm	LCD - Monochrome	Gray	0.44 mm	0.49 mm	I2C RS-232 TTL	Transflective	15.64 mm	53.64 mm	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transmissive Gray Monochrome USB 122 x 32
