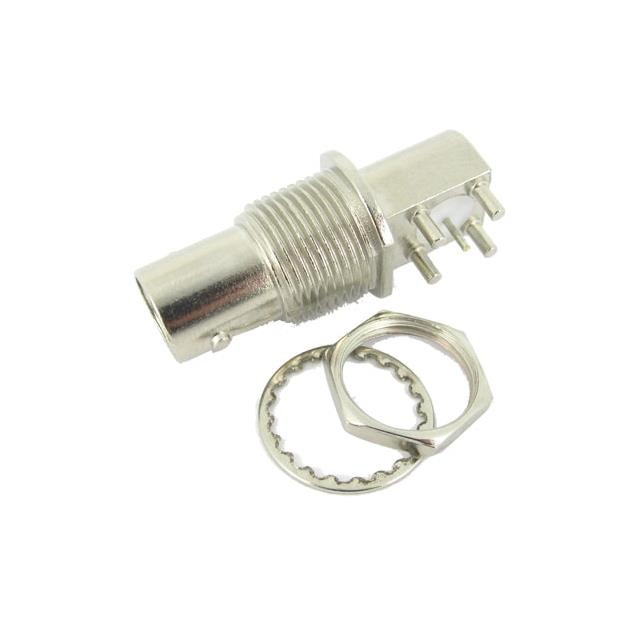

SCNBN-J1150-SORBP

Active

Suntsu Electronics, Inc

CONN BNC JACK 50 OHM PCB

Search across all available documentation for this part.

Active

Suntsu Electronics, Inc

CONN BNC JACK 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SCNBN-J1150-SORBP

Body Finish	Nickel
Body Material	Zinc
Center Contact Material	Brass
Center Contact Plating	Nickel
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Fastening Type	Bayonet Lock
Features	Board Guide
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Shield Termination	Solder

Part	Contact Termination	Impedance	Center Contact Material	Shield Termination	Body Material	Center Contact Plating	Fastening Type	Number of Ports	Frequency - Max [Max]	Connector Style	Connector Type	Housing Color	Voltage Rating	Mounting Type	Body Finish	Features	Mounting Feature	Dielectric Material
Suntsu Electronics, Inc SCNBN-J1150-SOSPM	Solder	50 Ohms	Brass	Solder	Zinc	Tin	Bayonet Lock	1	2 GHz	BNC	Female Socket Jack	Silver	500 V	Panel Mount Through Hole	Nickel
Suntsu Electronics, Inc SCNBN-J1150-SORBP	Solder	50 Ohms	Brass	Solder	Zinc	Nickel	Bayonet Lock	1	4 GHz	BNC	Female Socket Jack	Silver		Panel Mount Right Angle Through Hole	Nickel	Board Guide	Bulkhead - Front Side Nut
Suntsu Electronics, Inc SCNBN-J1150-SOIPM	Solder Cup	50 Ohms	Brass	Solder	Zinc	Nickel	Bayonet Lock	1	2 GHz	BNC	Female Socket Jack	Silver White	500 V		Nickel	Isolated	Bulkhead - Rear Side Nut	Acrylonitrile Butadiene Styrene (ABS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
