BNC-LR-PC(40)
ActiveHirose Electric USA, Inc.

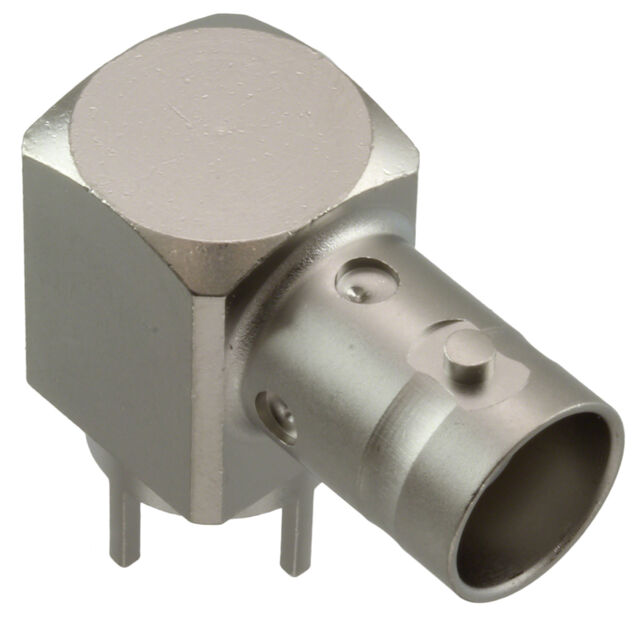

CONN BNC RCPT R/A 50 OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BNC-LR-PC(40)
ActiveHirose Electric USA, Inc.
CONN BNC RCPT R/A 50 OHM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BNC-LR-PC(40) |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 5000 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 27.13 | |
| 10 | $ 20.93 | |||
| 25 | $ 18.95 | |||
| 40 | $ 18.04 | |||
| 80 | $ 16.79 | |||
| 240 | $ 15.05 | |||
| 440 | $ 14.20 | |||
Description
General part information
BNC-LR Series
BNC Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
