SMLCBS-8-19

Active

Essentra Access Solutions

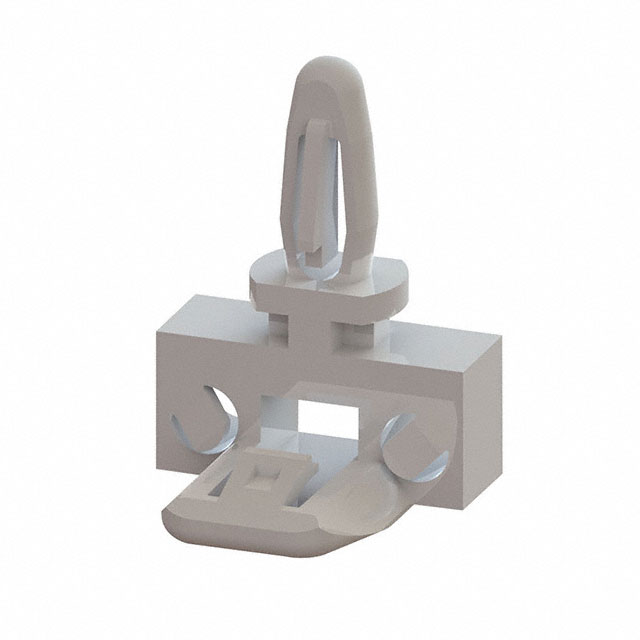

BRD SPT SNAP LOCK NYLON 1/2"

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 1/2"

Technical Specifications

Parameters and characteristics for this part

Specification	SMLCBS-8-19

Between Board Height	0.5 in
Between Board Height	12.7 mm
Between Board Height	0.5 in
Features	Removable
Holding Type	Snap Lock
Length - Overall [x]	0.902 in
Length - Overall [x]	22.9 mm
Material	Nylon
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.15625 in
Support Hole Diameter [diameter]	3.96 mm
Support Hole Diameter [diameter]	0.156 in
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Material	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Features	Between Board Height	Between Board Height	Between Board Height	Mounting Type	Holding Type	Length - Overall [x]	Length - Overall [x]
Essentra Access Solutions SMLCBS-8-19	0.15625 in	3.96 mm	0.156 in	Nylon	0.0625 "	0.062 "	1.57 mm	Removable	0.5 in	12.7 mm	0.5 in	Snap Lock	Snap Lock	0.902 in	22.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.40

General part information

Board Support Snap Lock / Snap Lock Nylon 0.500" (12.70mm) 1/2"
