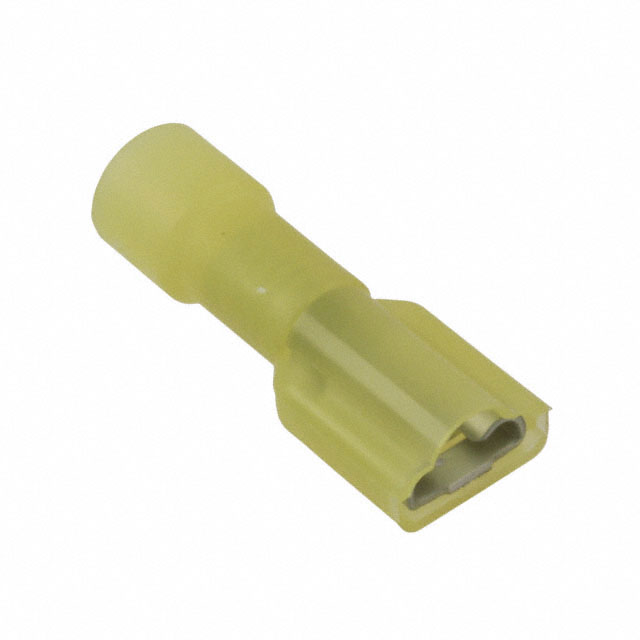

0196060002

Active

Molex

CONN QC RCPT 10-12AWG 0.250

Search across all available documentation for this part.

Active

Molex

CONN QC RCPT 10-12AWG 0.250

Technical Specifications

Parameters and characteristics for this part

Specification	0196060002

Color	Yellow
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Insulation Diameter [diameter]	5.97 mm
Insulation Diameter [diameter]	0.235 in
Length - Overall	26.16 mm
Length - Overall [x]	1.03 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

Part	Insulation	Tab Width	Tab Width	Contact Material	Gender	Termination	Color	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall	Contact Finish	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Tab Thickness	Tab Thickness	Length - Overall [x]
Molex 0196060002	Fully Insulated	6.35 mm	0.25 in	Brass	Female	Crimp	Yellow	5.97 mm	0.235 in	1.03 in	26.16 mm	Tin	Free Hanging (In-Line)	12 AWG	10 AWG	Standard	0.032 in	0.81 mm
Molex 0196060006	Fully Insulated	6.35 mm	0.25 in	Brass	Female	Crimp	Yellow	5.84 mm	0.23 in	1.02 in		Tin	Free Hanging (In-Line)	12 AWG	10 AWG	Standard	0.032 in	0.81 mm	25.91 mm
Molex 0196060005	Fully Insulated	6.35 mm	0.25 in	Brass	Female	Crimp	Yellow	5.84 mm	0.23 in	1.02 in		Tin	Free Hanging (In-Line)	12 AWG	10 AWG	Standard	0.032 in	0.81 mm	25.91 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector Fully Insulated
