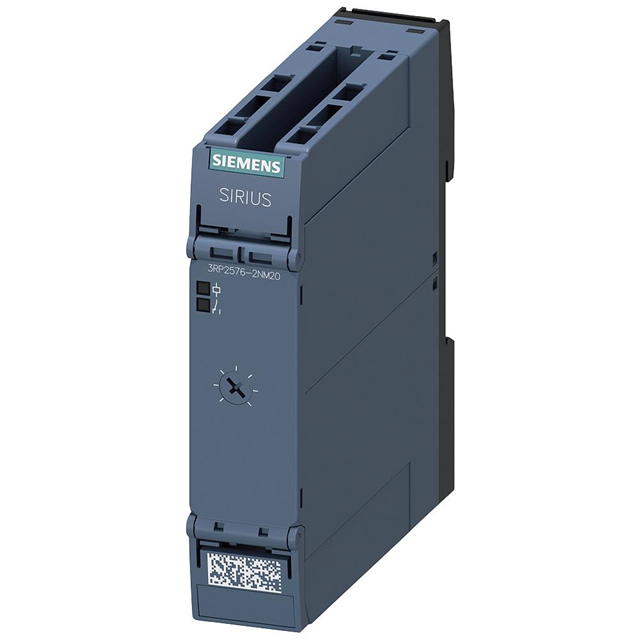

3RP25762NM20
ActiveSiemens
RELAY TIME DELAY 60SEC 3A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3RP25762NM20
ActiveSiemens
RELAY TIME DELAY 60SEC 3A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RP25762NM20 |
|---|---|
| Contact Rating @ Voltage | 250 VAC, 3 A |
| Delay Time [Max] | 60 Sec |
| Delay Time [Min] | 3 Sec |
| Function | Star Delta Controller |
| Mounting Type | DIN Rail |
| Relay Type | Mechanical Relay |
| Termination Style | Spring Terminal |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | Input Voltage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 155.82 | |
Description
General part information
3RP2576 Series
Star Delta Controller Time Delay Relay SPST-NO (1 Form A) 3 Sec ~ 60 Sec Delay 3A @ 250VAC DIN Rail
