SPMWHD32AMV5XAQ3SU

Samsung Semiconductor, Inc.

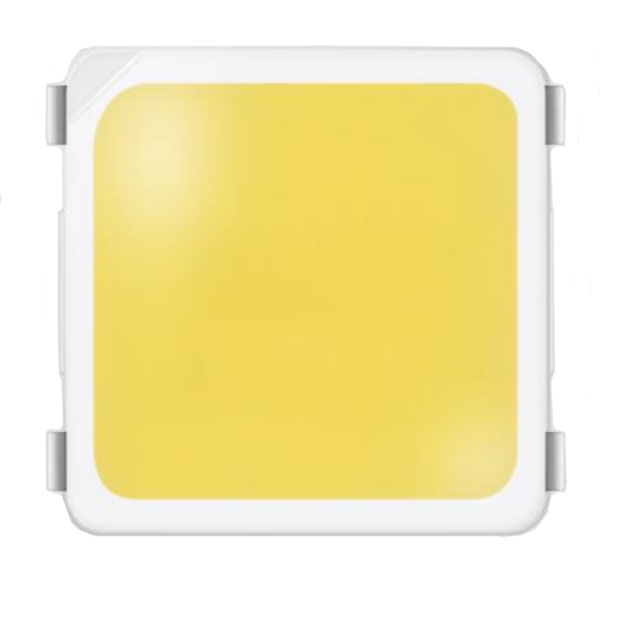

LED LM301B EVO WHITE 5700K 1212

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSPMWHD32AMD3XAT0L2 SPMWHD32AMD3XAT0L2

SPMWHD32AMV5XAQ3SU

Samsung Semiconductor, Inc.

LED LM301B EVO WHITE 5700K 1212

Deep-Dive with AI

DocumentsSPMWHD32AMD3XAT0L2 SPMWHD32AMD3XAT0L2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPMWHD32AMV5XAQ3SU

CCT (K)	5700 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	200 mA
Current - Test	65 mA
Flux @ 25°C, Current - Test	41 lm
Flux @ 25°C, Current - Test [Max]	42 lm
Flux @ 25°C, Current - Test [Min]	39 lm
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Lumens/Watt @ Current - Test	229 lm/W
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	1212
Thermal Resistance of Package [diameter]	7.5 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.75 V

SPMWHD32 Series

Part	Lumens/Watt @ Current - Test	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Supplier Device Package	CCT (K)	Mounting Type	Current - Test	Thermal Resistance of Package [diameter]	Flux @ 25°C, Current - Test	CRI (Color Rendering Index)	Viewing Angle	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Supplier Device Package
Samsung Semiconductor, Inc. SPMWHD32AMD5XAW3S0	190 lm/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	0.85 mm	0.033 "	Warm White	3030	2700 K	Surface Mount	65 mA	7.5 °C/W	34 lm	80	120 °	200 mA	2.75 V
Samsung Semiconductor, Inc. SPMWHD32AMD3XAR0S0	218 lm/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	0.85 mm	0.033 "	Cool White	3030	5000 K	Surface Mount	65 mA	7.5 °C/W	39 lm	70	120 °	180 mA	2.75 V
Samsung Semiconductor, Inc. SPMWHD32AMD3XARSS0	218 lm/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	0.85 mm	0.033 "	Cool White	3030	5000 K	Surface Mount	65 mA	7.5 °C/W	39 lm	70	120 °	180 mA	2.75 V
Samsung Semiconductor, Inc. SPMWHD32AMD5XATKS0	212 lm/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	0.85 mm	0.033 "	Neutral White	3030	4000 K	Surface Mount	65 mA	7.5 °C/W	38 lm	80	120 °	180 mA	2.75 V	40 lm	36 lm
Samsung Semiconductor, Inc. SPMWHD32AMD7XATKS0	173 lm/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	0.85 mm	0.033 "	Neutral White	3030	4000 K	Surface Mount	65 mA	7.5 °C/W	31 lm	90	120 °	180 mA	2.75 V			34 lm	28 lm
Samsung Semiconductor, Inc. SPMWHD32AMD7XAV0S0		1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	0.85 mm	0.033 "	Warm White	3030		Surface Mount	65 mA	7.5 °C/W	29 lm	90	120 °	180 mA	2.75 V
Samsung Semiconductor, Inc. SPMWHD32AMV5XAQ3SU	229 lm/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	0.9 mm	0.035 "	Cool White		5700 K	Surface Mount	65 mA	7.5 °C/W	41 lm	80	120 °	200 mA	2.75 V			42 lm	39 lm	1212
Samsung Semiconductor, Inc. SPMWHD32AMVKXAU3SW	198 lm/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	0.9 mm	0.035 "	Warm White	3030	3500 K	Surface Mount	65 mA	7.5 °C/W	38	90	120 °	200 mA	2.8 V				34 lm
Samsung Semiconductor, Inc. SPMWHD32AMD5XAP0S0	212 lm/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	0.85 mm	0.033 "	Cool White	3030	6500 K	Surface Mount	65 mA	7.5 °C/W	38 lm	80	120 °	180 mA	2.75 V	40 lm	36 lm
Samsung Semiconductor, Inc. SPMWHD32AMD3XAUKS0	207 lm/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	0.85 mm	0.033 "	Warm White	3030	3500 K	Surface Mount	65 mA	7.5 °C/W	37 lm	70	120 °	180 mA	2.75 V			40 lm	34 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.53
	Digi-Reel®	1	$ 0.53
	Tape & Reel (TR)	40000	$ 0.11

Description

General part information

SPMWHD32 Series

LED Lighting LM301B EVO White, Cool 5700K 3-Step MacAdam Ellipse 2.75V 65mA 120° 1212 (3030 Metric)

Documents

Technical documentation and resources

SPMWHD32AMD3XAT0L2

Datasheet

SPMWHD32AMD3XAT0L2

Datasheet
