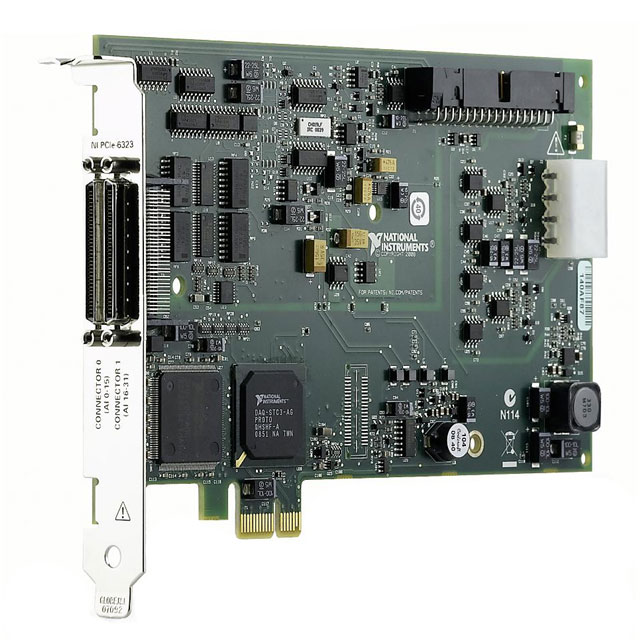

781045-01

Active

DAQ DEVICE MULTIFUNCT I/O PCIE

Search across all available documentation for this part.

Active

DAQ DEVICE MULTIFUNCT I/O PCIE

Technical Specifications

Parameters and characteristics for this part

Specification	781045-01

Bidirectional Channels	16
Bus Connection	PCIe
Counter/Timers	4
Front Connection	VHDCI
Function	Multifunction I/O
Input Range	10 V
Input Resolution	16 Bits
Number of Inputs and Type [custom]	16
Number of Inputs and Type [custom]	16
Number of Inputs and Type [custom]	16
Number of Outputs and Type [custom]	4
Number of Outputs and Type [custom]	32
Output Range [Max]	10 V
Output Range [Min]	-10 V
Sampling Rate (Per Second)	250 k per second
Type	DAQ Device

Part	Front Connection	Sampling Rate (Per Second)	Counter/Timers	Output Range [Min]	Output Range [Max]	Bidirectional Channels	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Function	Bus Connection	Input Resolution	Input Range	Type	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]
NI 781045-01	VHDCI	250 k per second	4	-10 V	10 V	16	4	32	Multifunction I/O	PCIe	16 Bits	10 V	DAQ Device	16	16	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1496.74

General part information

Multifunction I/O DAQ Device PCIe VHDCI
