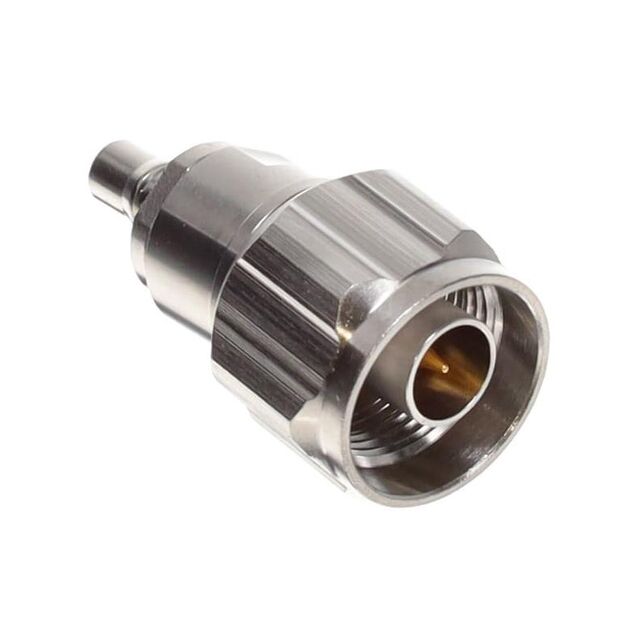

33_N-QMA-50-1/133_NE

Active

Huber+Suhner, Inc.

COAX ADAPT N TO QMA

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

COAX ADAPT N TO QMA

Technical Specifications

Parameters and characteristics for this part

Specification	33_N-QMA-50-1/133_NE

Adapter Series	N to QMA
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	QMA Jack, Female Socket
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Fastening Type	Center Contact Plating	Convert To (Adapter End)	Adapter Type	Dielectric Material	Convert From (Adapter End)	Style	Frequency - Max [Max]	Impedance	Mounting Type	Body Finish	Adapter Series	Conversion Type	Center Contact Material
Huber+Suhner, Inc. 33_N-QMA-50-1/133_NE	85 °C	-40 °C	Brass	Snap-On Threaded	Gold	Female Socket QMA Jack	Plug to Jack	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	N Plug Male Pin	Straight	18 GHz	50 Ohms	Free Hanging (In-Line)	White Bronze	N to QMA	Between Series	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Plug, Male Pin To QMA Jack, Female Socket 50 Ohms
