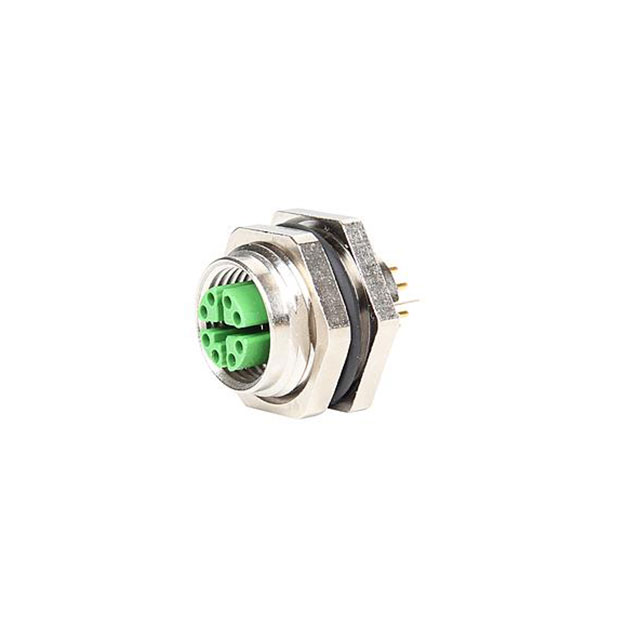

MMT371A3B5-0009

Active

METZ CONNECT USA Inc.

CONN JACK FMALE 8POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MMT371A3B5-0009

Active

METZ CONNECT USA Inc.

CONN JACK FMALE 8POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMT371A3B5-0009

Applications	Railway
Color	Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Copper Zinc
Current Rating (Amps)	0.5 A
Features	Potted
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	X
Primary Material	Metal
Shell Material	Copper Zinc
Shell Size - Insert	M12-8
Shielding	Shielded
Termination	Solder
Voltage Rating	50 VAC, 60 VDC

MMT371A Series

Part	Mounting Type	Number of Positions	Ingress Protection	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Feature	Shielding	Contact Finish - Mating	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Contact Material	Features	Connector Type	Voltage Rating	Current Rating (Amps)	Shell Material	Color	Applications	Material Flammability Rating	Insert Material
METZ CONNECT USA Inc. MMT371A3B5-0009	Panel Mount Through Hole	8	IP67 - Dust Tight Waterproof	X	85 °C	-40 °C	Solder	Bulkhead - Front Side Nut	Shielded	Gold	M12-8	0.203 Ám	8 Áin	Metal	Copper Zinc	Potted	Female Sockets Jack	50 VAC 60 VDC	0.5 A	Copper Zinc	Silver	Railway
METZ CONNECT USA Inc. MMT371A115-0009	Panel Mount Through Hole	4	IP67 - Dust Tight Waterproof	D	85 °C	-40 °C	Solder	Bulkhead - Front Side Nut	Shielded	Gold	M12-4	0.2 Ám	7.87 Áin	Metal	Copper Zinc	Board Guide Potted	Female Sockets Jack	250 VDC	4 A	Copper Zinc	Silver	Industrial	UL94 V-0	Nylon Polyamide (PA)
METZ CONNECT USA Inc. MMT371A3B5-0001	Panel Mount Through Hole	8	IP67 - Dust Tight Waterproof	X	85 °C	-40 °C	Solder	Bulkhead - Front Side Nut	Shielded	Gold	M12-8			Metal	Copper Zinc		Female Sockets Jack	50 VAC 60 VDC	0.5 A	Copper Zinc	Silver	Railway
METZ CONNECT USA Inc. MMT371A115-0001	Panel Mount Through Hole	4	IP67 - Dust Tight Waterproof	D	85 °C	-40 °C	Solder	Bulkhead - Front Side Nut	Shielded	Gold	M12-4	0.2 Ám	7.87 Áin	Metal	Copper Zinc	Board Guide	Female Sockets Jack	250 VDC	4 A	Copper Zinc	Silver	Industrial	UL94 V-0	Nylon Polyamide (PA)
METZ CONNECT USA Inc. MMT371A115	Panel Mount Through Hole	4	IP67 - Dust Tight Waterproof	D	85 °C	-40 °C	Solder	Bulkhead - Front Side Nut	Shielded	Gold	M12-4	0.2 Ám	7.87 Áin	Metal	Copper Zinc	Board Guide	Female Sockets Jack	250 VDC	4 A	Copper Zinc	Silver	Industrial	UL94 V-0	Nylon Polyamide (PA)
METZ CONNECT USA Inc. MMT371A3B5	Panel Mount Through Hole	8	IP67 - Dust Tight Waterproof	X	85 °C	-40 °C	Solder	Bulkhead - Front Side Nut	Shielded	Gold	M12-8	0.203 Ám	8 Áin	Metal	Copper Zinc	Board Guide	Female Sockets Jack	50 VAC 60 VDC		Copper Zinc	Silver	Railway

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.42

Description

General part information

MMT371A Series

8 Position Circular Connector Jack, Female Sockets Solder
