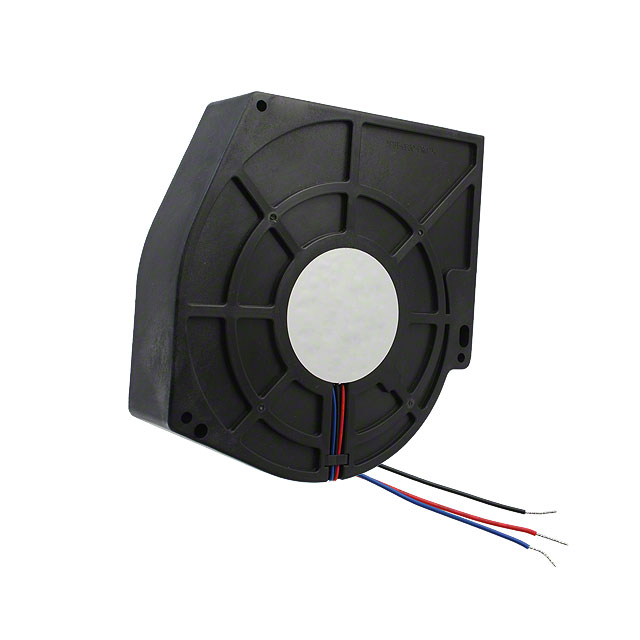

BFB1624H-F00

Active

Delta Electronics

FAN BLOWER 159X40MM 24VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN BLOWER 159X40MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	BFB1624H-F00

Air Flow	61.8 CFM
Air Flow	1.73 mł/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.74 A
Fan Type	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	56.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	2200 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	159 mm
Size / Dimension [z]	165 mm
Static Pressure	345.5 Pa
Static Pressure	1.387 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	589.7 g
Weight	1.3 lbs
Width [y]	40 mm

Part	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Current Rating (Amps)	Width [y]	Air Flow	Air Flow	Static Pressure	Static Pressure	Features	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Noise	Termination	Approval Agency	RPM	Weight	Weight	Material - Blade	Bearing Type	Material - Frame	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Lifetime @ Temp.
Delta Electronics BFB1624H-F00	26.4 VDC	14 VDC	Blower	0.74 A	40 mm	61.8 CFM	1.73 mł/min	345.5 Pa	1.387 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Rectangular/Rounded	165 mm	159 mm	56.5 dB	3 Wire Leads	CE CSA UL VDE	2200 RPM	589.7 g	1.3 lbs	Plastic	Ball	Plastic	24 VDC	-10 °C	-10 °C	60 °C	60 °C	50000 Hrs
Delta Electronics BFB1624H	26.4 VDC	14 VDC	Blower	0.74 A	40 mm	61.8 CFM	1.73 mł/min	345.5 Pa	1.387 in H2O		Rectangular/Rounded	165 mm	159 mm	56.5 dB	2 Wire Leads	CE CSA UL VDE	2200 RPM	589.7 g	1.3 lbs	Plastic	Ball	Plastic	24 VDC	-10 °C	-10 °C	60 °C	60 °C	50000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Rectangular/Rounded - 159mm L x 165mm H Ball 61.8 CFM (1.73m³/min) 3 Wire Leads
