02726.99.01
ActivePrysmian Group

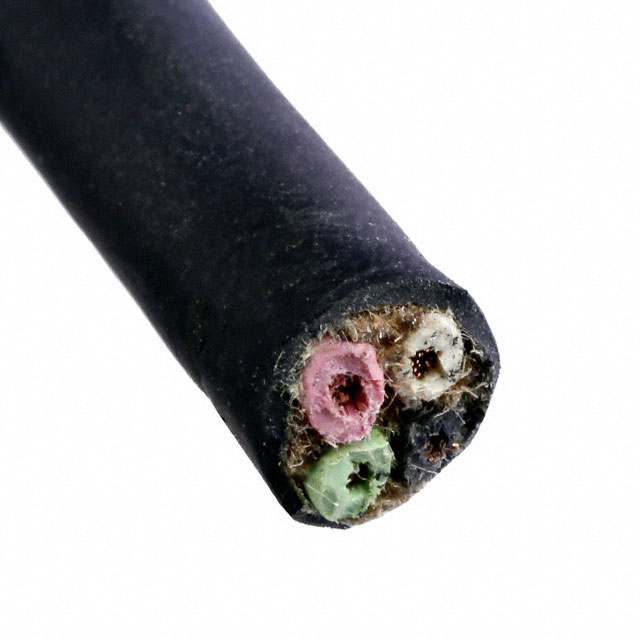

CABLE 4COND 12AWG BLACK 1=1FT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
02726.99.01
ActivePrysmian Group
CABLE 4COND 12AWG BLACK 1=1FT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 02726.99.01 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Ethylene Propylene Terpolymer Rubber (EPDM) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 30 AWG |
| Conductor Strand [custom] | 65 |
| Jacket (Insulation) Diameter [diameter] | 16.51 mm |
| Jacket (Insulation) Diameter [diameter] | 0.65 in |
| Jacket (Insulation) Material | Carolprene |
| Jacket (Insulation) Thickness | 1.143 mm |
| Jacket (Insulation) Thickness | 0.045 in |
| Jacket Color | Black |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Voltage | 600 V |
| Wire Gauge | 12 AWG |
02726 Series
| Part | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Insulation | Voltage | Cable Type | Length | Length | Usage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Prysmian Group | 4 | 90 °C | -40 °C | Copper Bare | 30 AWG | 65 | Carolprene | Black | 1.143 mm | 0.045 in | 16.51 mm | 0.65 in | 12 AWG | Ethylene Propylene Terpolymer Rubber (EPDM) | 600 V | Multi-Conductor | |||||
Prysmian Group | 4 | 90 °C | -40 °C | Copper Bare | 30 AWG | 65 | Carolprene | Black | 1.143 mm | 0.045 in | 16.51 mm | 0.65 in | 12 AWG | Ethylene Propylene Terpolymer Rubber (EPDM) | 600 V | Multi-Conductor | 1000 ft | 304.8 m | Cord and Cordset | ||
Prysmian Group | 4 | 90 °C | -40 °C | Copper Bare | 30 AWG | 65 | Carolprene | Black | 1.143 mm | 0.045 in | 16.51 mm | 0.65 in | 12 AWG | Ethylene Propylene Terpolymer Rubber (EPDM) | 600 V | Multi-Conductor | 3000 " | 76.2 m | Cord and Cordset | ||
Prysmian Group | 4 | 90 °C | -40 °C | Copper Bare | 30 AWG | 65 | Carolprene | Black | 1.143 mm | 0.045 in | 16.51 mm | 0.65 in | 12 AWG | Ethylene Propylene Terpolymer Rubber (EPDM) | 600 V | Multi-Conductor | 2500 ft | 762 m | Cord and Cordset | ||
Prysmian Group | 4 | 90 °C | -40 °C | Copper Bare | 30 AWG | 65 | Carolprene | Black | 1.143 mm | 0.045 in | 16.51 mm | 0.65 in | 12 AWG | Ethylene Propylene Terpolymer Rubber (EPDM) | 600 V | Multi-Conductor | Cord and Cordset | ||||
Prysmian Group | 4 | 90 °C | -40 °C | Copper Bare | 30 AWG | 65 | Carolprene | Black | 1.143 mm | 0.045 in | 16.51 mm | 0.65 in | 12 AWG | Ethylene Propylene Terpolymer Rubber (EPDM) | 600 V | Multi-Conductor | 3000 " | 76.2 m | Cord and Cordset | ||
Prysmian Group | 4 | 90 °C | -40 °C | Copper Bare | 30 AWG | 65 | Carolprene | Black | 1.143 mm | 0.045 in | 16.51 mm | 0.65 in | 12 AWG | Ethylene Propylene Terpolymer Rubber (EPDM) | 600 V | Multi-Conductor | Cord and Cordset | 500 ' | 152.4 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 23000 | $ 1.91 | |
Description
General part information
02726 Series
4 Conductor Multi-Conductor Cable Black 12 AWG
