1061108

Active

SICK, Inc.

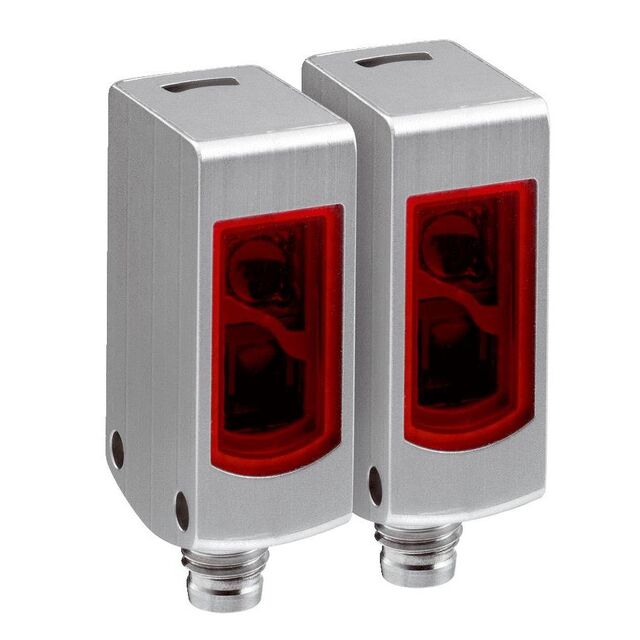

SENSOR THROUGH-BEAM 5M PNP

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR THROUGH-BEAM 5M PNP

Technical Specifications

Parameters and characteristics for this part

Part	Response Time	Connection Method	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]	Cable Length	Cable Length	Ingress Protection	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Light Source	Sensing Distance
SICK, Inc. 1052880	200 µs	Cable	0.394 in	10 mm	30 VDC	10 VDC	78.74 in	2 m	IP67 IP69K	NPN - Dark-ON/Light-ON	-10 °C	50 °C	Through-Beam	RED (650nm)
SICK, Inc. 1052891	500 µs	Connector M8	196.85 in	5 m	30 VDC	10 VDC			IP66 IP67 IP68 IP69K	PNP	-30 °C	70 °C	Through-Beam	RED (650nm)
SICK, Inc. 1061108	500 µs	Cable with Connector	196.85 in	5 m	30 VDC	10 VDC	5.906 in	150 mm	IP66 IP67 IP68 IP69K	PNP	-30 °C	70 °C	Through-Beam	RED (650nm)
SICK, Inc. 1052872	500 µs	Cable	196.85 in	5 m	30 VDC	10 VDC	78.74 in	2 m	IP67	NPN	-40 °C	60 °C	Through-Beam	RED (650nm)
SICK, Inc. WSE4S-3P3130V	500 µs	Cable with Connector		177.165 in	30 VDC	10 VDC	5.906 in	150 mm	IP66 IP67 IP68 IP69K	PNP	-30 °C	70 °C	Through-Beam	RED (650nm)	4.5 m
SICK, Inc. 1052876	500 µs	Connector M8	196.85 in	5 m	30 VDC	10 VDC			IP67	NPN	-40 °C	60 °C	Through-Beam	RED (650nm)
SICK, Inc. 1067843	500 µs	Connector M8	196.85 in	5 m	30 VDC	10 VDC			IP67	PNP	-40 °C	60 °C	Through-Beam	RED (650nm)
SICK, Inc. 1052888	500 µs	Cable with Connector	196.85 in	5 m	30 VDC	10 VDC	5.906 in	150 mm		PNP	-30 °C	70 °C	Through-Beam	RED (650nm)
SICK, Inc. 1054784	500 µs	Connector M12	196.85 in	5 m	30 VDC	10 VDC			IP66 IP67 IP68 IP69K	PNP	-30 °C	70 °C	Through-Beam	RED (650nm)
SICK, Inc. 1052890	500 µs	Connector M8	196.85 in	5 m	30 VDC	10 VDC			IP67	PNP	-40 °C	60 °C	Through-Beam	RED (650nm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 351.01

General part information

Through-Beam Optical Sensor 196.850" (5m) PNP

Technical documentation and resources
