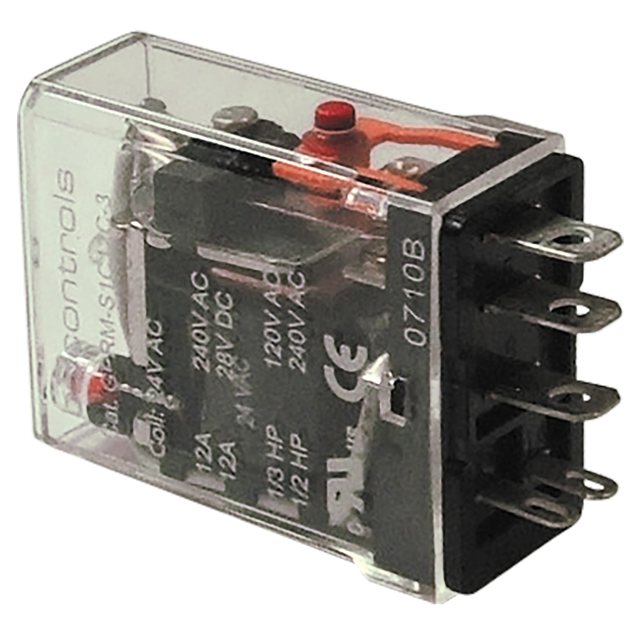

GPRM-S1C12ZC
Activec3controls
RELAY GEN PURPOSE SPDT 12A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GPRM-S1C12ZC
Activec3controls
RELAY GEN PURPOSE SPDT 12A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GPRM-S1C12ZC |
|---|---|
| Coil Current | 32 mA |
| Coil Resistance | 750 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A |
| Mounting Type | Socketable |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 24 VDC, 240 VAC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GPRM-S1 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
