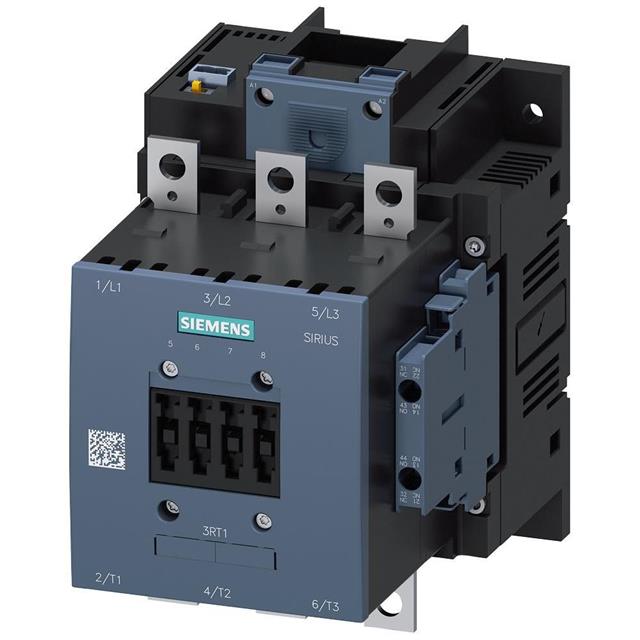

3RT10546NB363PA0

Active

Siemens

CONTACTOR S6 115A 21-27VUC 2NO/2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS Contactor Selection Guide.pdy SIRIUS Contactor Fail Safe Brochure +1

3RT10546NB363PA0

Active

Siemens

CONTACTOR S6 115A 21-27VUC 2NO/2

Deep-Dive with AI

DocumentsSIRIUS Contactor Selection Guide.pdy SIRIUS Contactor Fail Safe Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT10546NB363PA0

Coil Voltage [Max]	27.3 VAC/DC
Coil Voltage [Min]	21 VAC/DC
Contact Rating (Current)	115 A

3RT1054 Series

Part	Coil Power	Mounting Type	Operate Time	Contact Form	Features	Contact Rating (Current)	Coil Voltage [Max]	Coil Voltage [Min]	Termination Style	Release Time	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Must Operate Voltage
Siemens 3RT10546NF36	320 W	Chassis Mount DIN Rail	75 ms	3PST-NO (3 Form A)	Auxiliary Contacts	115 A	127 VAC/DC	96 VAC/DC	Screw Terminal	90 ms	1000 VAC	-25 °C	60 °C
Siemens 3RT10542NP36	320 W	Chassis Mount DIN Rail	75 ms	3PST-NO (3 Form A)	Auxiliary Contacts	115 A	277 VAC	200 VAC/DC	Screw Terminal	90 ms	1000 VAC	-25 °C	60 °C
Siemens 3RT10542AU36	360 W	Chassis Mount DIN Rail	95 ms	3PST-NO (3 Form A)	Auxiliary Contacts	115 A	277 VAC	240 VAC/DC	Screw Terminal	60 ms	1000 VAC	-25 °C	60 °C
Siemens 3RT10543XB460LA2	320 W	Chassis Mount DIN Rail	75 ms	3PST-NO (3 Form A)	Auxiliary Contacts	115 A			Screw Terminal	90 ms	1000 VAC	-40 °C	70 °C	24 VDC	16.8 VDC
Siemens 3RT10546AU36	360 W	Chassis Mount DIN Rail	95 ms	3PST-NO (3 Form A)	Auxiliary Contacts	115 A	277 VAC	240 VAC/DC	Screw Terminal	60 ms	1000 VAC	-25 °C	60 °C
Siemens 3RT10546AM36	300 VA	Chassis Mount	95 ms	3PST-NO (3 Form A)	Auxiliary Contacts	115 A	242 VAC/DC	200 VAC/DC	Screw Terminal	60 ms	690 VAC	-25 °C	60 °C
Siemens 3RT10541AR36	360 W	Chassis Mount DIN Rail	95 ms	3PST-NO (3 Form A)	Auxiliary Contacts	115 A	480 VAC/DC	440 VAC/DC	Screw Terminal	60 ms	1000 VAC	-25 °C	60 °C
Siemens 3RT10546NB363PA0						115 A	27.3 VAC/DC	21 VAC/DC
Siemens 3RT10546AV36	360 W	Chassis Mount DIN Rail	95 ms	3PST-NO (3 Form A)	Auxiliary Contacts	115 A	420 VAC/DC	380 VAC/DC	Screw Terminal	60 ms	1000 VAC	-25 °C	60 °C
Siemens 3RT10541AM36	360 W	Chassis Mount DIN Rail	95 ms	3PST-NO (3 Form A)	Auxiliary Contacts	115 A	220 VAC/DC	200 VAC/DC	Screw Terminal	60 ms	1000 VAC	-25 °C	60 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 707.03
