031-4321

Active

Amphenol RF

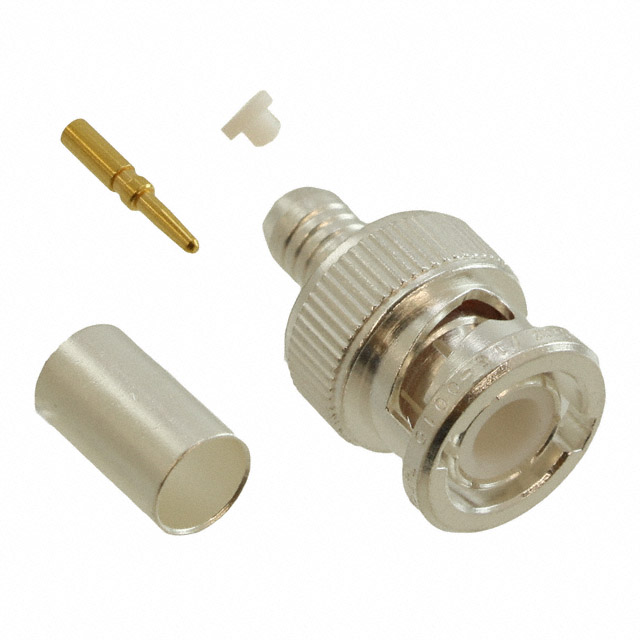

CONN BNC PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-4321

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-4321

Body Finish	Silver
Body Material	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

031-43 Series

Part	Mating Cycles	Insertion Loss	Center Contact Plating	Fastening Type	Voltage Rating	Frequency - Max [Max]	Impedance	Connector Style	Connector Type	Shield Termination	Contact Termination	Body Material	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Center Contact Material	Number of Ports	Body Finish	Mounting Type	Dielectric Material	Includes	Cable Group
Amphenol RF 031-4328	500	0.2 dB	Gold	Bayonet Lock	500 V	4 GHz	50 Ohms	BNC	Female Socket Jack	Crimp	Crimp Solder	Brass	Silver	-65 ░C	165 °C	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Phosphor Bronze	1	Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)
Amphenol RF 031-4321	500	0.2 dB	Gold	Bayonet Lock	500 V	4 GHz	50 Ohms	BNC	Male Pin Plug	Crimp	Crimp Solder	Brass	Silver	-65 ░C	165 °C	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Brass	1	Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule
Amphenol RF 031-4327	500	0.2 dB	Gold	Bayonet Lock	500 V	4 GHz	50 Ohms	BNC	Female Socket Jack	Crimp	Crimp Solder	Brass	Silver	-65 ░C	165 °C	141 58C 7806A Belden 89907 RG-58	Phosphor Bronze	1	Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)
Amphenol RF 031-4384	500	0.2 dB	Gold	Bayonet Lock	500 V	4 GHz	50 Ohms	BNC	Male Pin Plug	Crimp	Solder	Brass	Silver	-65 ░C	165 °C		Brass	1	Nickel	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)
Amphenol RF 031-4326	500	0.2 dB	Gold	Bayonet Lock	500 V	4 GHz	50 Ohms	BNC	Male Pin Plug	Crimp	Crimp	Brass	Silver	-65 ░C	165 °C	RG-55	Brass	1	Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule	142 223 400

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.32
		10	$ 14.87
		25	$ 13.45
		50	$ 12.49
		100	$ 11.63
		250	$ 10.60
		500	$ 9.91
		1000	$ 9.29

Description

General part information

031-43 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
