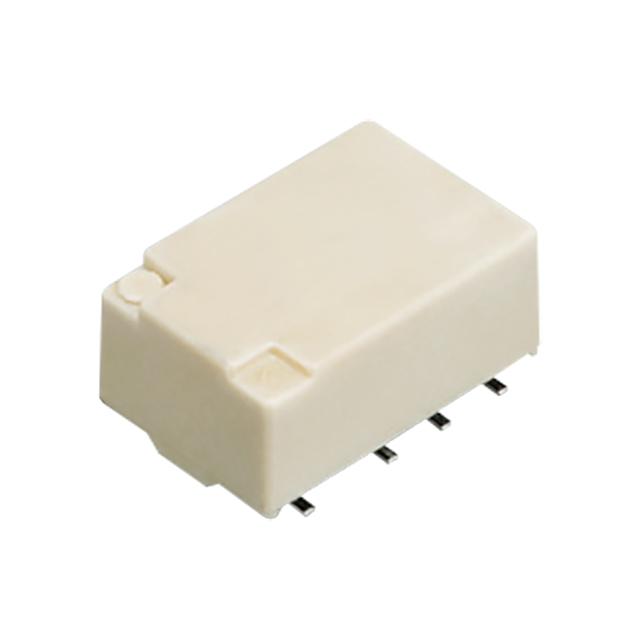

AGQ20TA12Y

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 2A 12V

Deep-Dive with AI

Search across all available documentation for this part.

AGQ20TA12Y

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 2A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AGQ20TA12Y

Approval Agency	BSI, cURus
Coil Current	11.7 mA
Coil Resistance	1.026 kOhms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	220 W, 250 VA
Mounting Type	Surface Mount
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	4 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Switching Voltage	110 VDC, 125 VAC
Termination Style	Gull Wing

AGQ20T Series

Part	Coil Resistance	Coil Current	Contact Form	Contact Material	Operate Time	Contact Rating (Current)	Coil Type	Relay Type	Load - Max Switching	Switching Voltage	Coil Voltage	Must Operate Voltage	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Must Release Voltage	Release Time	Mounting Type
Panasonic Electric Works AGQ20TS1HZ	16 Ohms	93.8 mA	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	4 ms	2 A	Non Latching	General Purpose	220 W 250 VA	110 VDC 125 VAC	1.5 VDC	1.13 VDC	Gull Wing	85 °C	-40 °C	BSI cURus	0.15 VDC	4 ms	Surface Mount
Panasonic Electric Works AGQ20TS1HY	15.991 Ohms	93.8 mA	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	4 ms	2 A	Non Latching	General Purpose	220 W 250 VA	110 VDC 125 VAC	1.5 VDC	1.13 VDC	Gull Wing	85 °C	-40 °C	BSI cURus	0.15 VDC	4 ms	Surface Mount
Panasonic Electric Works AGQ20TA09	579 Ohms	15.5 mA	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	4 ms	2 A	Non Latching	General Purpose	220 W 250 VA	110 VDC 125 VAC	9 VDC	6.75 VDC	Gull Wing	85 °C	-40 °C	BSI cURus	0.9 VDC	4 ms	Surface Mount
Panasonic Electric Works AGQ20TS4H	145 Ohms	31 mA	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	4 ms	2 A	Non Latching	General Purpose	220 W 250 VA	110 VDC 125 VAC	4.5 VDC	3.38 VDC	Gull Wing	85 °C	-40 °C	BSI cURus	0.45 VDC	4 ms	Surface Mount
Panasonic Electric Works AGQ20TS24	2500 Ohms	9.6 mA	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	4 ms	2 A	Non Latching	General Purpose	220 W 250 VA	110 VDC 125 VAC	24 VDC	18 VDC	Gull Wing	85 °C	-40 °C	BSI cURus	2.4 VDC	4 ms	Surface Mount
Panasonic Electric Works AGQ20TA4HX	145 Ohms	31 mA	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	4 ms	2 A	Non Latching	General Purpose	220 W 250 VA	110 VDC 125 VAC	4.5 VDC	3.38 VDC	Gull Wing	85 °C	-40 °C	BSI cURus	0.45 VDC	4 ms	Surface Mount
Panasonic Electric Works AGQ20T4H	145 Ohms	31 mA	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	4 ms	2 A	Non Latching	General Purpose	220 W 250 VA	110 VDC 125 VAC	4.5 VDC	3.38 VDC	PC Pin	85 °C	-40 °C	BSI cURus	0.45 VDC	4 ms	Through Hole
Panasonic Electric Works AGQ20T09	579 Ohms	15.5 mA	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	4 ms	2 A	Non Latching	General Purpose	220 W 250 VA	110 VDC 125 VAC	9 VDC	6.75 VDC	PC Pin	85 °C	-40 °C	BSI cURus	0.9 VDC	4 ms	Through Hole
Panasonic Electric Works AGQ20TA12Y	1.026 kOhms	11.7 mA	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	4 ms	2 A	Non Latching	General Purpose	220 W 250 VA	110 VDC 125 VAC	12 VDC	9 VDC	Gull Wing	85 °C	-40 °C	BSI cURus	1.2 VDC	4 ms	Surface Mount
Panasonic Electric Works AGQ20T2H	41 Ohms	58.5 mA	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	4 ms	2 A	Non Latching	General Purpose	220 W 250 VA	110 VDC 125 VAC	2.4 VDC	1.8 VDC	PC Pin	85 °C	-40 °C	BSI cURus	0.24 VDC	4 ms	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	900	$ 3.92

Description

General part information

AGQ20T Series

General Purpose Relay DPDT (2 Form C) Surface Mount
