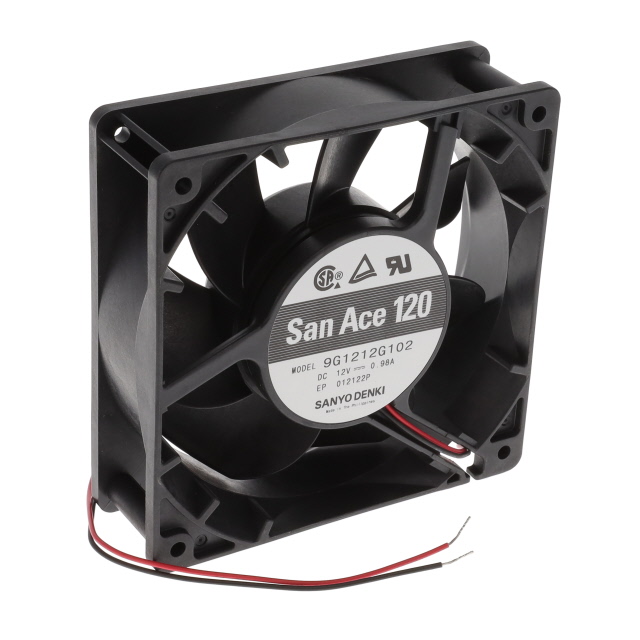

9G1212G102

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Rotor Balancing

9G1212G102

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9G1212G102

Air Flow	137 CFM
Air Flow	3.84 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.98 A
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	49 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	11.76 W
RPM	3600 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	0.542 in H2O
Static Pressure	135 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	330.22 g
Weight	0.728 lb
Width [y]	38 mm

9G1212 Series

Part	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Bearing Type	Air Flow	Air Flow	Width [y]	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	RPM	Weight	Weight	Noise	Fan Type	Power (Watts)	Termination	Operating Temperature [Max]	Features	Material - Blade	Material - Frame	Air Flow
Sanyo Denki America Inc. 9G1212E402	12 VDC	10.2 VDC	13.8 VDC	CSA TUV UL	40000 Hrs	119 mm	119 mm	580 mA	Ball	3.22 mł/min	115 CFM	25 mm	0.394 in H2O	98.1 Pa	-10 °C	-10 °C	60 °C	60 °C	3650 RPM	239.95 g	0.529 lb	48 dB	Tubeaxial	6.96 W	2 Wire Leads
Sanyo Denki America Inc. 9G1212P4G031	12 VDC	10.2 VDC	13.8 VDC	CSA TUV UR	40000 Hrs	119 mm	119 mm	900 mA	Ball	3.64 m³/min	130 CFM	25 mm			-20 C	-20 °C	70 °C		4100 RPM	240 g	0.529 lb	51 dB(A)	Tubeaxial	10.8 W	4 Wire Leads	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	Plastic
Sanyo Denki America Inc. 9G1212G4D011	12 VDC	10.2 VDC	13.8 VDC	CSA TUV UL	40000 Hrs	119 mm	119 mm	900 mA	Ball	3.64 m³/min	130 CFM	25 mm			-20 C	-20 °C	70 °C		4100 RPM	239.95 g	0.529 lb	51 dB(A)	Tubeaxial	10.8 W	3 Wire Leads	70 °C	Locked Rotor Sensor	Plastic	Plastic
Sanyo Denki America Inc. 9G1212E101	12 VDC	10.2 VDC	13.8 VDC	CSA TUV UL	40000 Hrs	119 mm	119 mm	610 mA	Ball	3.3 m³/min	118 CFM	38 mm	0.401 in H2O	100 Pa	-20 C	-20 °C	70 °C		3100 RPM	330.22 g	0.728 lb	46 dB(A)	Tubeaxial	7.32 W	3 Wire Leads	70 °C	Speed Sensor (Tach)	Plastic	Plastic
Sanyo Denki America Inc. 9G1212A4D01	12 VDC	10.2 VDC	13.8 VDC	CSA TUV UL	40000 Hrs	120 mm	120 mm	400 mA	Ball	2.8 m³/min	100 CFM	25 mm	0.309 in H2O	77 Pa	-20 C	-20 °C	70 °C		3150 RPM	239.95 g	0.529 lb	44 dB	Tubeaxial	4.8 W	3 Wire Leads	70 °C	Locked Rotor Sensor	Plastic	Plastic
Sanyo Denki America Inc. 9G1212G102	12 VDC	10.2 VDC	13.8 VDC	CSA TUV UL	40000 Hrs	119 mm	119 mm	0.98 A	Ball	3.84 m³/min	137 CFM	38 mm	0.542 in H2O	135 Pa	-20 C	-20 °C	70 °C		3600 RPM	330.22 g	0.728 lb	49 dB	Tubeaxial	11.76 W	2 Wire Leads	70 °C		Plastic	Plastic
Sanyo Denki America Inc. 9G1212H1D01	12 VDC	7 V	13.8 VDC	CSA TUV UL	40000 Hrs	119 mm	119 mm	0.38 A	Ball			38 mm	0.283 in H2O	70.5 Pa	-20 C	-20 °C	70 °C		2600 RPM	330.22 g	0.728 lb	39 dB(A)	Tubeaxial	4.56 W	3 Wire Leads	70 °C	Locked Rotor Sensor	Plastic	Plastic
Sanyo Denki America Inc. 9G1212B401	12 VDC	10.2 VDC	13.8 VDC		40000 Hrs	119 mm	119 mm	60 mA	Ball	0.868 mł/min	31 CFM	25 mm	0.039 in H2O	9.7 Pa	-20 C	-20 °C	70 °C		1000 RPM	240 g	0.529 lb	18 dB(A)	Tubeaxial	720 mW	3 Wire Leads	70 °C	Speed Sensor (Tach)	Plastic	Plastic
Sanyo Denki America Inc. 9G1212M4021	12 VDC	7 V	13.8 VDC	CSA TUV UL	40000 Hrs	119 mm	119 mm	140 mA	Ball	59 CFM		25 mm	0.124 in H2O	30.9 Pa	-20 C	-20 °C	70 °C		1950 RPM	239.95 g	0.529 lb	29 dB(A)	Tubeaxial	1.68 W	2 Wire Leads	70 °C		Plastic	Plastic	1.65 m³/min
Sanyo Denki America Inc. 9G1212P4E05	12 VDC	10.2 VDC	13.8 VDC	CSA TUV UL	40000 Hrs	120 mm	120 mm	580 mA	Ball	3.22 mł/min	115 CFM	25 mm	0.394 in H2O	98.1 Pa	-20 C	-20 °C	70 °C		3650 RPM	239.95 g	0.529 lb	48 dB	Tubeaxial	6.96 W	4 Wire Leads	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 42.63
		21	$ 32.36
		42	$ 30.78

Description

General part information

9G1212 Series

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 137.0 CFM (3.84m³/min) 2 Wire Leads
