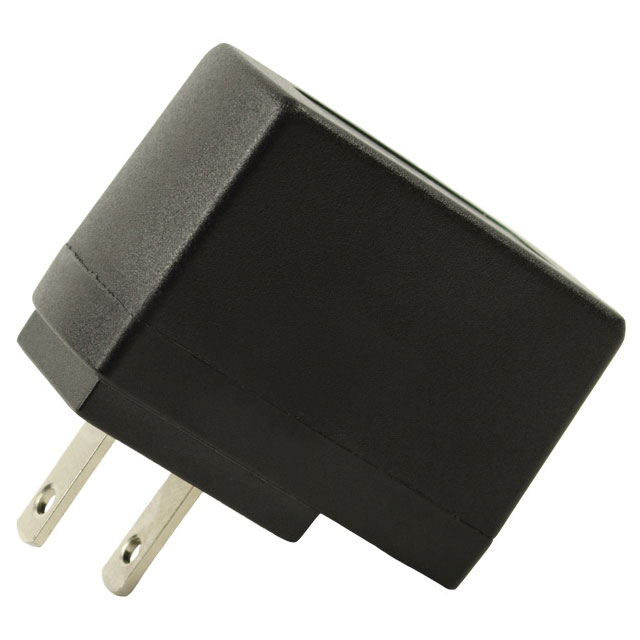

SWM6-9-NH-I38

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 9V 6W

Deep-Dive with AI

Search across all available documentation for this part.

SWM6-9-NH-I38

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 9V 6W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWM6-9-NH-I38

Applications	Medical
Approval Agency	FCC, EN, CSA, IEC, UL, PSE, CB Scheme
Current - Output (Max) [Max]	660 mA
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	6 W
Region Utilized	North America
Size / Dimension [x]	55.6 mm
Size / Dimension [x]	2.19 in
Size / Dimension [y]	1.07 in
Size / Dimension [y]	27.1 mm
Size / Dimension [z]	1.46 "
Size / Dimension [z]	37.2 mm
Standard Number	60950-1, 60601-1, 61000-3-2, 55032 Class B, C22.2 No. 60601-1, 55024, 61000-3-3, 55011 Class B
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V

SWM6-9 Series

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output	Power (Watts)	No Load Power Consumption	Operating Temperature [Max]	Form	Efficiency	Current - Output (Max) [Max]	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Input Connector	Region Utilized	Approval Agency	Input Type	Cord Length	Cord Length	Output Connector [x]	Output Connector [diameter]	Output Connector	Polarization	No Load Power Consumption [Max]	Output Connector [z]	Output Connector [y]
CUI Inc. SWM6-9-NV-I38	1.11 in	41.2 mm	53.5 mm	1.62 in	2.11 "	28.2 mm	9 V	6 W	100 mW	40 °C	Wall Mount (Class II)	Level VI	660 mA	Medical	90 VAC	264 VAC	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	NEMA 1-15P	North America	CB Scheme CSA EN FCC IEC PSE UL	Fixed Blade
CUI Inc. SWM6-9-NH-P6R	1.44 "	25 mm	55 mm	0.98 in	2.17 "	36.7 mm	9 V	6 W	100 mW	40 °C	Wall Mount (Class II)	Level VI	660 mA	Medical	90 VAC	264 VAC	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	NEMA 1-15P	North America	CB Scheme CSA EN FCC IEC PSE UL	Fixed Blade	1.5 m	59 in	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	Positive Center
CUI Inc. SWM6-9-EH-P6R	1.44 "	25 mm	55 mm	0.98 in	2.17 "	36.7 mm	9 V	6 W		40 °C	Wall Mount (Class II)	CoC Tier 2 Level VI	660 mA	Medical	90 VAC	264 VAC	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	CEE 7/16	Europe	CB Scheme CSA EN FCC IEC PSE TUV UL	Fixed Blade	1.5 m	59 in	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	Positive Center	75 mW
CUI Inc. SWM6-9-NH-I38	1.46 "	27.1 mm	55.6 mm	1.07 in	2.19 in	37.2 mm	9 V	6 W	100 mW	40 °C	Wall Mount (Class II)	Level VI	660 mA	Medical	90 VAC	264 VAC	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	NEMA 1-15P	North America	CB Scheme CSA EN FCC IEC PSE UL	Fixed Blade
CUI Inc. SWM6-9-EV-MUB	1.11 in	41.2 mm	53.5 mm	1.62 in	2.11 "	28.2 mm	9 V	6 W		40 °C	Wall Mount (Class II)	CoC Tier 2 Level VI	660 mA	Medical	90 VAC	264 VAC	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	CEE 7/16	Europe	CB Scheme CSA EN FCC IEC PSE TUV UL	Fixed Blade	1.5 m	59 in			USB Micro		75 mW
CUI Inc. SWM6-9-NH-P6	1.44 "	25 mm	55 mm	0.98 in	2.17 "	36.7 mm	9 V	6 W	100 mW	40 °C	Wall Mount (Class II)	Level VI	660 mA	Medical	90 VAC	264 VAC	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	NEMA 1-15P	North America	CB Scheme CSA EN FCC IEC PSE UL	Fixed Blade	1.5 m	59 in	9.5 mm	2.5 mm 5.5 mm	Barrel Plug	Positive Center
CUI Inc. SWM6-9-NV-MUB	1.11 in	41.2 mm	53.5 mm	1.62 in	2.11 "	28.2 mm	9 V	6 W	100 mW	40 °C	Wall Mount (Class II)	Level VI	660 mA	Medical	90 VAC	264 VAC	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	NEMA 1-15P	North America	CB Scheme CSA EN FCC IEC PSE UL	Fixed Blade	1.5 m	59 in			USB Micro
CUI Inc. SWM6-9-EV-P6	1.11 in	41.2 mm	53.5 mm	1.62 in	2.11 "	28.2 mm	9 V	6 W		40 °C	Wall Mount (Class II)	CoC Tier 2 Level VI	660 mA	Medical	90 VAC	264 VAC	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	CEE 7/16	Europe	CB Scheme CSA EN FCC IEC PSE TUV UL	Fixed Blade	1.5 m	59 in	9.5 mm	2.5 mm 5.5 mm	Barrel Plug	Positive Center	75 mW
CUI Inc. SWM6-9-EV-I38	1.11 in	41.2 mm	53.5 mm	1.62 in	2.11 "	28.2 mm	9 V	6 W		40 °C	Wall Mount (Class II)	CoC Tier 2 Level VI	660 mA	Medical	90 VAC	264 VAC	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	CEE 7/16	Europe	CB Scheme CSA EN FCC IEC PSE TUV UL	Fixed Blade							75 mW
CUI Inc. SWM6-9-NH-P5R	1.44 "	25 mm	55 mm	0.98 in	2.17 "	36.7 mm	9 V	6 W	100 mW	40 °C	Wall Mount (Class II)	Level VI	660 mA	Medical	90 VAC	264 VAC	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	NEMA 1-15P	North America	CB Scheme CSA EN FCC IEC PSE UL	Fixed Blade	1.5 m	59 in	2.1 mm		Barrel Plug R/A	Positive Center		9.5 mm	5.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1120	$ 8.65

Description

General part information

SWM6-9 Series

9V 6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
