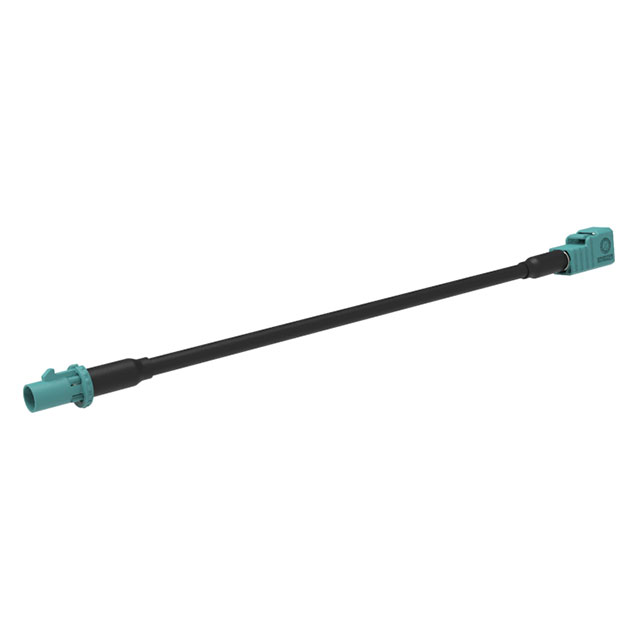

095FPZFJZSG-024

Active

Amphenol RF

COAX CBL FAKRA TO FAKRA 24"

Search across all available documentation for this part.

Active

Amphenol RF

COAX CBL FAKRA TO FAKRA 24"

Technical Specifications

Parameters and characteristics for this part

Part	2nd Connector Mounting Type	Cable Type	2nd Contact Gender	Style	Color	Frequency - Max [Max]	1st Contact Gender	Length	Length	Overall Impedance	Cable Impedance	1st Connector Mounting Type	1st Connector	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	Features	Length
Amphenol RF 095FPZFJZSG-024	Free Hanging (In-Line)	RG-58	Male	Fakra to Fakra	Black	3 GHz	Female	24 "	609.6 mm	50 Ohms	50 Ohms	Free Hanging (In-Line)	Fakra III (Gen 3.0) Jack	Fakra II (Gen 2.0) Plug	85 °C	-40 °C
Amphenol RF 095FPZFPZSHM100	Free Hanging (In-Line)	RG-174	Male	Fakra to Fakra	Black	3 GHz	Male	39.4 in	1 m	50 Ohms	50 Ohms	Free Hanging (In-Line)	Fakra II (Gen 2.0) Plug	Fakra II (Gen 2.0) Plug	85 °C	-40 °C	Shielded Z Code	3.3 ft
Amphenol RF 095FPZFJZSGM500	Free Hanging (In-Line)	RG-58	Male	Fakra to Fakra	Black	3 GHz	Female	196.9 in	5 m	50 Ohms	50 Ohms	Free Hanging (In-Line)	Fakra III (Gen 3.0) Jack	Fakra II (Gen 2.0) Plug	85 °C	-40 °C		16.4 ft
Amphenol RF 095FPZFJZSH-012	Free Hanging (In-Line)	RG-174	Male	Fakra to Fakra	Black	3 GHz	Female	12 "	304.8 mm	50 Ohms	50 Ohms	Free Hanging (In-Line)	Fakra III (Gen 3.0) Jack	Fakra II (Gen 2.0) Plug	85 °C	-40 °C	Shielded Z Code
Amphenol RF 095FPZFJZSHM100	Free Hanging (In-Line)	RG-174	Male	Fakra to Fakra	Black	3 GHz	Female	39.4 in	1 m	50 Ohms	50 Ohms	Free Hanging (In-Line)	Fakra III (Gen 3.0) Jack	Fakra II (Gen 2.0) Plug	85 °C	-40 °C	Shielded Z Code	3.3 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial Fakra to Fakra RG-58 24.00" (609.60mm)
