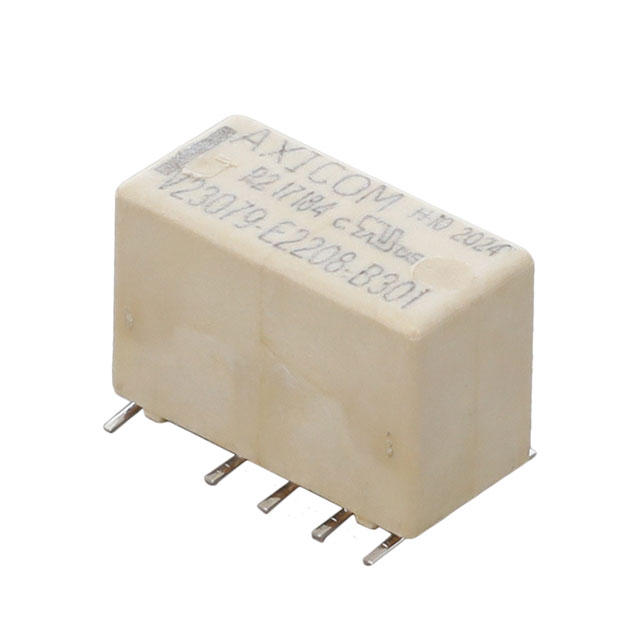

1422007-8
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GENERAL PURPOSE DPDT 2A 3V
Deep-Dive with AI
Search across all available documentation for this part.
1422007-8
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GENERAL PURPOSE DPDT 2A 3V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1422007-8 |
|---|---|
| Coil Current | 46.7 mA |
| Coil Resistance | 64 Ohms |
| Coil Type | Latching, Dual Coil |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 440 W, 500 VA |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 2.25 VDC |
| Operate Time | 4 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.75 | |
| 10 | $ 4.45 | |||
| 25 | $ 3.96 | |||
| 50 | $ 3.76 | |||
| 100 | $ 3.56 | |||
| 250 | $ 3.17 | |||
| 500 | $ 2.97 | |||
| 1000 | $ 2.77 | |||
| Tape & Reel (TR) | 2000 | $ 2.81 | ||
Description
General part information
1422007 Series
General Purpose Relay DPDT (2 Form C) Surface Mount
Documents
Technical documentation and resources
No documents available
