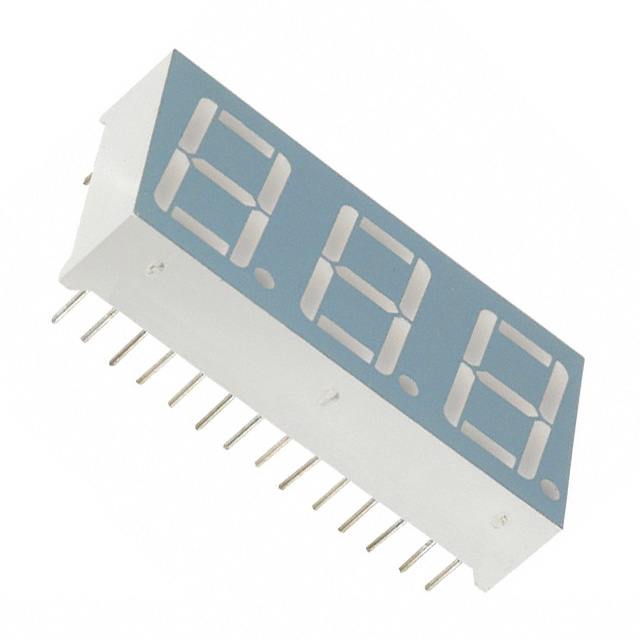

LDT-C512RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.56" TRP GRN 28DIP
Deep-Dive with AI
Search across all available documentation for this part.
LDT-C512RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.56" TRP GRN 28DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDT-C512RI |
|---|---|
| Color | Green |
| Common Pin | Common Cathode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 3.5 mcd |
| Number of Characters | 3 |
| Package / Case | 28-DIP |
| Package / Case | 0.6 in |
| Package / Case | 15.24 mm |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 19 mm |
| Size / Dimension [x] | 0.748 in |
| Size / Dimension [y] | 37.8 mm |
| Size / Dimension [y] | 1.488 in |
| Size / Dimension [z] | 8 mm |
| Size / Dimension [z] | 0.315 " |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.08 | |
| 13 | $ 2.67 | |||
| 104 | $ 2.10 | |||
| 507 | $ 1.84 | |||
| 1001 | $ 1.76 | |||
| 2002 | $ 1.69 | |||
| 5005 | $ 1.62 | |||
Description
General part information
LDT-C512 Series
Display Modules - LED Character and Numeric Green 7-Segment 3 Character Common Cathode 2.2V 10mA 0.748" H x 1.488" W x 0.315" D (19.00mm x 37.80mm x 8.00mm) 28-DIP (0.600", 15.24mm)
