CWSAC NCCW2 .032 1#

Active

Amerway Inc

SAC305 NCCW2 .032 1# SPL

Search across all available documentation for this part.

Active

Amerway Inc

SAC305 NCCW2 .032 1# SPL

Technical Specifications

Parameters and characteristics for this part

Specification	CWSAC NCCW2 .032 1#

Composition	Sn96.5Ag3Cu0.5 (96.5/3/0.5)
Diameter [diameter]	0.81 mm
Diameter [diameter]	0.032 in
Flux Type	No-Clean
Form	Spool, 1 lb (454 g)
Melting Point [custom]	428 °F
Melting Point [custom]	220 °C
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	Room Temperature
Type	Wire Solder
Weight	453.59 g
Weight	1 lbs
Wire Gauge	20 AWG

Part	Shelf Life	Type	Storage/Refrigeration Temperature	Diameter [diameter]	Diameter [diameter]	Form	Wire Gauge	Shelf Life Start	Composition	Weight	Weight	Melting Point [custom]	Melting Point [custom]	Flux Type
Amerway Inc CWSAC NCCW2 .032 1#	60 Months	Wire Solder	Room Temperature	0.81 mm	0.032 in	Spool 1 lb (454 g)	20 AWG	Date of Manufacture	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	453.59 g	1 lbs	428 °F	220 °C	No-Clean
Amerway Inc CWSAC RA3% .032 1#	60 Months	Wire Solder	Room Temperature	0.81 mm	0.032 in	Spool 1 lb (454 g)	20 AWG	Date of Manufacture	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	453.59 g	1 lbs	428 °F	220 °C	Rosin Activated (RA)
Amerway Inc CWSAC WRAP .015	60 Months	Wire Solder	Room Temperature	0.38 mm	0.015 in	Spool 1 lb (454 g)	27 AWG	Date of Manufacture	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	453.59 g	1 lbs	428 °F	220 °C	Rosin Activated (RA)
Amerway Inc CWSAC NC.015 1#	60 Months	Wire Solder	Room Temperature	0.38 mm	0.015 in	Spool 1 lb (454 g)	27 AWG	Date of Manufacture	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	453.59 g	1 lbs	428 °F	220 °C	No-Clean

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

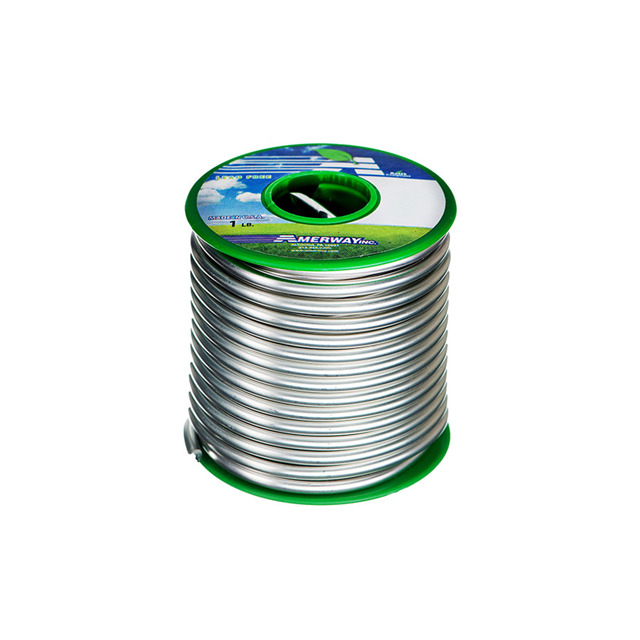

Lead Free No-Clean Wire Solder Sn96.5Ag3Cu0.5 (96.5/3/0.5) 20 AWG Spool, 1 lb (454 g)

Technical documentation and resources

No documents available
